1SBL371022R8411

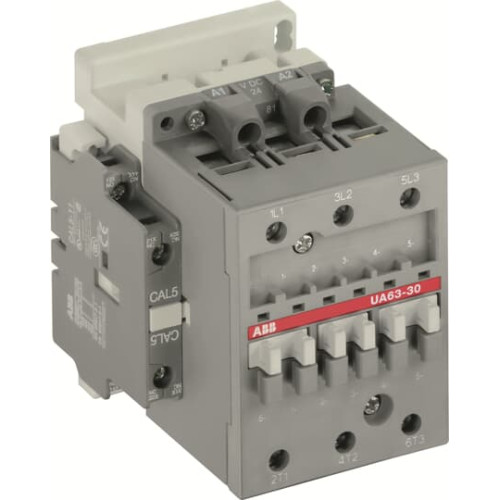

UA63-30-11 110V 50Hz / 110-120V 60Hz Contactor

Manufacturer's No: UA63-30-11     Manufacturer: ABB
UA63-30-11 110V 50Hz / 110-120V 60Hz Contactor

Availability Available to order

£493.17
  • UA63-30-11 3-pole contactor for capacitor switching
  • Operational voltage: 110V 50Hz / 110-120V 60Hz
  • Suitable for switching capacitor banks with inrush current peaks ? 100 times nominal rms current
  • Electrical durability: 100,000 operating cycles
  • Design: block type with 3 main poles and 2 built-in auxiliary contacts
  • Control circuit: AC operated with laminated magnet circuit
  • Capacitors must be discharged (residual voltage at terminals ? 50V) before re-energizing
  • Maximum peak current values specified by the contactor
  • Wide range of accessories available


Product

Manufacturer Material ID -
UA63-30-11
Net Weight -
1.20kg

Additional Product Information

Commodity Code -
85364900
Minimum Order Quantity -
1
UNSPSC -
39121529
ABB

Availability Available to order

£493.17
