1SBL417024R7000

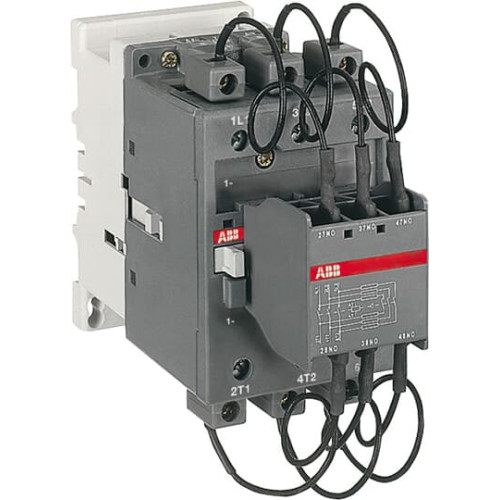

UAF75-30-00RA 100-250V 50Hz / 100-250V 60Hz / 100-250V DC Contactor

Manufacturer's No: UAF75-30-00RA     Manufacturer: ABB
UAF75-30-00RA 100-250V 50Hz / 100-250V 60Hz / 100-250V DC Contactor

Availability Available to order

£799.84
  • UAF75-30-00RA 3-pole contactor for capacitor switching
  • Voltage range: 100-250V AC/DC, 50Hz/60Hz
  • Designed for peak currents exceeding 100 times nominal rms current
  • Electrical durability: 250,000 operating cycles for Ue < 500V, 100,000 cycles for 500V ? Ue ? 690V
  • Equipped with damping resistors for limiting current peaks
  • Special front-mounted block for serial insertion of 3 damping resistors
  • Capacitors must be discharged (residual voltage ? 50V) before re-energizing
  • Suitable for AC or DC control circuits with voltage interruptions or dips (? 20 ms)
  • Accessories available for customization
  • Electronic coil interface accepts wide control voltage range

Read more

  • Features distinct closing and opening, noise-free operation
  • Capable of managing large voltage variations
  • Allows for various supply voltages based on installation location or control voltage fluctuations


Product

Manufacturer Material ID -
UAF75-30-00RA
Net Weight -
1.35kg

Additional Product Information

Commodity Code -
85364900
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Type of electrical connection of main circuit -
Screw connection
Rated blind power at 400 V, 50 Hz -
50 Kilo-blindpower
Voltage type for actuating -
AC/DC
ABB

Availability Available to order

£799.84
