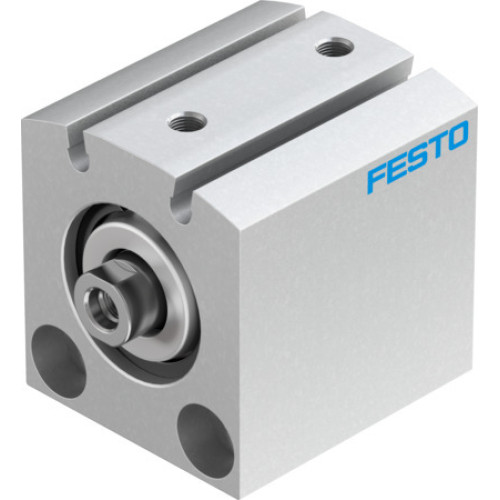

ADVC-25-10-I-P-A Short-stroke cylinder

Manufacturer's No: ADVC-25-10-I-P-A     Manufacturer: Festo
ADVC-25-10-I-P-A Short-stroke cylinder

Availability Available to order

£84.225
  • Short-stroke cylinder ADVC-25-10-I-P-A
  • Stroke: 10 mm
  • Piston diameter: 25 mm
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Mode of operation: Double-acting
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar, 14.5 psi, 145 psi
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C

Read more

  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 247 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 295 N
  • Moving mass: 35 g, 29 g for 0 mm stroke, additional 6 g per 10 mm stroke
  • Product weight: 160 g, 134 g for 0 mm stroke, additional 34 g per 10 mm stroke
  • Type of mounting: With through-hole, with accessories, either
  • Pneumatic connection: M5
  • Material: RoHS-compliant
  • Material cover: Wrought aluminium alloy, anodised
  • Material seals: TPE-U(PU)
  • Material housing: Wrought aluminium alloy, anodised
  • Material piston rod: High-alloy steel


Product

Manufacturer Material ID -
ADVC-25-10-I-P-A
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Max. output current -
- Milliampere
Ambient temperature -
- Degrees celsius
Type of analogy output -
UN
Blind zone -
- Millimetre
Setting procedure -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Standard for interfaces -
UN
Relative linearity deflection -
- Percentage
Relative repeat accuracy -
- Percentage
Supply voltage -
- Volt
Material active area of sensor -
UN
Material of cable sheath -
UN
AWG-number -
-
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Adjustable distance -
- Millimetre
Measuring range length -
- Millimetre
Material housing -
Brass
Voltage type -
DC
Housing material -
Brass
Switching frequency -
52 Hertz
Type of electric connection -
Connector M12
Type of switching output -
NPN
Type of switch function -
Programmable/configurable
Construction type housing -
Cylinder, screw-thread
No load current -
30 Milliampere
Diameter sensor -
12 Millimetre
Length of sensor -
70 Millimetre
Festo

Availability Available to order

£84.225
