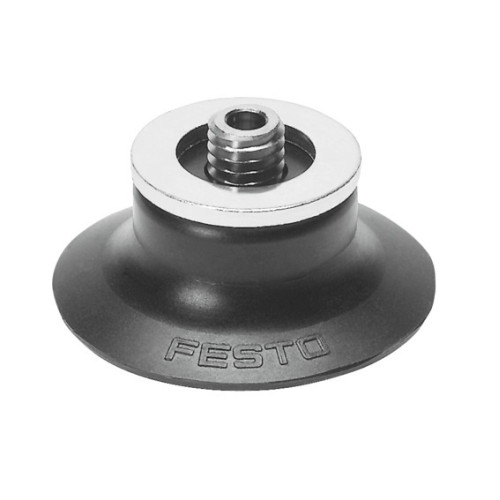

ESS-30-SN Suction cup complete

Manufacturer's No: ESS-30-SN     Manufacturer: Festo
ESS-30-SN Suction cup complete

Availability On Request

£8.98
  • Suction cup model: ESS-30-SN
  • Min. workpiece radius: 110 mm
  • Nominal size: 3 mm
  • Suction cup diameter: 30 mm
  • Suction cup volume: 0.867 cubic centimeters
  • Suction cup shape: Round, flat
  • Operating pressure: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • Corrosion resistance class CRC: 1 (Low corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature: -10°C to 70°C
  • Holding force at nominal operating pressure: 40.8 N
  • Lateral force at nominal operating pressure: 19.5 N
  • Product weight: 9 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M6
  • Colour: Black
  • Shore hardness: 60 +/- 5
  • Material: Suction cup - NBR, screwed plug - Nickel-plated brass, Steel (galvanised and chrome-plated)
  • RoHS-compliant materials
  • Suitable for food use (refer to supplementary material information)


Product

Manufacturer Material ID -
ESS-30-SN
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
41111926

Technical Specification

Rated voltage -
- Volt
Type of cable -
UN
Permitted cable outer temperature during assembling/handling -
- Degrees celsius
Permitted cable outer temperature after assembling without vibration -
- Degrees celsius
Continuity resistor -
- Milli-Ohm
Material of contact surface -
UN
Degree of protection (IP) -
UN
Positioning cable feed, field-sided -
UN
Type of plug-in contact, field sided -
UN
Rated current In -
- Ampere
Type of electrical connection, field-sided -
Free conductor end
Material contact body -
CuSn
Cable length -
3 Metre
Colour cable sheath -
Grey
Degree of protection (IP rating) -
IP68
Material of cable sheath -
Polyurethane (PUR)
Number of poles -
3
Positioning cable feed, box-sided -
Angled
Type of electrical connection, box-sided -
M12
Type of plug-in contact, box-sided -
Female (bus)
With LED indication -
Festo

Availability On Request

£8.98
