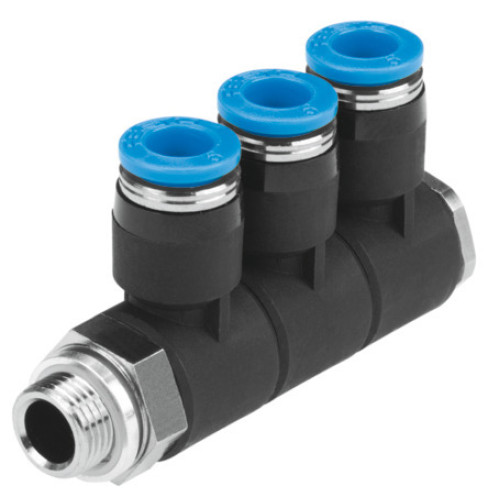

QSLV3-G1/2-12 Multiple distributor

Manufacturer's No: QSLV3-G1/2-12     Manufacturer: Festo
QSLV3-G1/2-12 Multiple distributor

Availability Available to order

£27.37
  • Product: QSLV3-G1/2-12 Multiple Distributor
  • Design: L-shape with 3 outlets
  • Male thread size: G1/2 for tubing with outer diameter of 12mm
  • Seal type: Sealing ring on screwed plug
  • Operating pressure range: -0.095 MPa to 6 MPa (-0.95 BAR to 87 PSI)
  • Temperature-dependent operating pressure: -0.095 MPa to 1.4 MPa (-0.95 BAR to 203 PSI)
  • Operating pressure for water: max. 0.6 MPa at 0 - 50°C
  • Operating medium: Compressed air to ISO 8573-1:2010, Water (liquid, ice-free)
  • Corrosion resistance class: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Ambient temperature range: -10°C to 80°C
  • Nominal torque: 26 Nm with ± 20% tolerance
  • Product weight: 171g
  • Number of outputs: 3, Number of supply lines: 1
  • Pneumatic connection: Port 1 - Male thread G1/2, Port 2 - For tubing outer diameter of 12mm
  • Release ring color: Blue
  • Materials: RoHS-compliant, Housing - PBT, Hollow bolt - Nickel-plated brass, Release ring - POM, Tubing seal - NBR, Tubing clamp component - High-alloy stainless steel


Product

Manufacturer Material ID -
QSLV3-G1/2-12
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
8544 4290
Country of Origin -
TW
UNSPSC -
41111926

Technical Specification

Rated voltage -
- Volt
Type of cable -
UN
Permitted cable outer temperature during assembling/handling -
- Degrees celsius
Permitted cable outer temperature after assembling without vibration -
- Degrees celsius
Continuity resistor -
- Milli-Ohm
Degree of protection (IP) -
UN
Colour cable sheath -
UN
Rated current In -
- Ampere
Material contact body -
CuSn
Cable length -
1 Metre
Degree of protection (IP rating) -
IP67
Material of cable sheath -
Polyurethane (PUR)
Material of contact surface -
Nickel/gold
Number of poles -
5
Positioning cable feed, box-sided -
Straight
Positioning cable feed, field-sided -
Straight
Type of electrical connection, box-sided -
M12
Type of electrical connection, field-sided -
M12
Type of plug-in contact, box-sided -
Female (bus)
Type of plug-in contact, field sided -
Male (plug)
