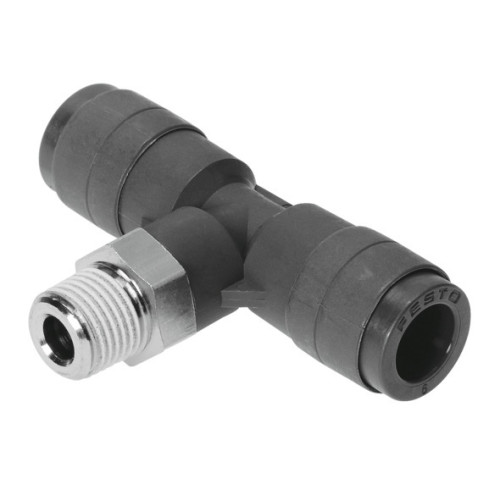

QST-V0-1/8-4 Push-in T-fitting

Manufacturer's No: QST-V0-1/8-4     Manufacturer: Festo
QST-V0-1/8-4 Push-in T-fitting

Availability Available to order

£8.97
  • Push-in T-fitting QST-V0-1/8-4
  • Resistant to welding spatter
  • T-shape design with external hexagon
  • Male thread R1/8 for tubing O.D. 4mm
  • Fire test material: UL94 V-0 for housing and releasing ring
  • Operating pressure range: -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi)
  • Maximum water pressure: 0.6 MPa at 50°C
  • Operating medium: Compressed air and water (liquid, ice-free)
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Ambient temperature range: 0°C to 60°C
  • Nominal torque: 7 Nm with ± 20% tolerance
  • Product weight: 14g
  • Mounting: External hexagon (size 10mm)
  • Pneumatic connection: Male thread R1/8 for port 1, tubing O.D. 4mm for port 2
  • Release ring color: Black
  • Materials: Nickel-plated brass screwed plug, RoHS-compliant PBT housing and release ring, NBR tubing seal, high-alloy stainless steel and brass tubing clamp components


Product

Manufacturer Material ID -
QST-V0-1/8-4
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
74122000
Country of Origin -
JP
Minimum Order Quantity -
1
UNSPSC -
26121629

Technical Specification

Rated voltage -
- Volt
Type of cable -
UN
Permitted cable outer temperature during assembling/handling -
- Degrees celsius
Permitted cable outer temperature after assembling without vibration -
- Degrees celsius
Continuity resistor -
- Milli-Ohm
Degree of protection (IP) -
UN
Positioning cable feed, field-sided -
UN
Type of plug-in contact, field sided -
UN
Rated current In -
- Ampere
Cable length -
2 Metre
Colour cable sheath -
Orange
Degree of protection (IP rating) -
IP68
Material contact body -
CuZn
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of contact surface -
Gold
Number of poles -
5
Positioning cable feed, box-sided -
Angled
Type of electrical connection, box-sided -
Connector 7/8 inch
Type of electrical connection, field-sided -
Free conductor end
Type of plug-in contact, box-sided -
Female (bus)
