3055401

VS2 Series: Emitter, Range: 1.2 m max, Input: 12-24 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Manufacturer's No: VS25EV     Manufacturer: Turck Banner
VS2 Series: Emitter, Range: 1.2 m max, Input: 12-24 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Availability On Request

£55.35
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Miniature sensor with ultra-flat design
  • Operating Voltage: 10-30 VDC
  • Max. Range: 1200 mm
  • Cable Length: 2 m, 3-wire


Product

Manufacturer Material ID -
VS25EV
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

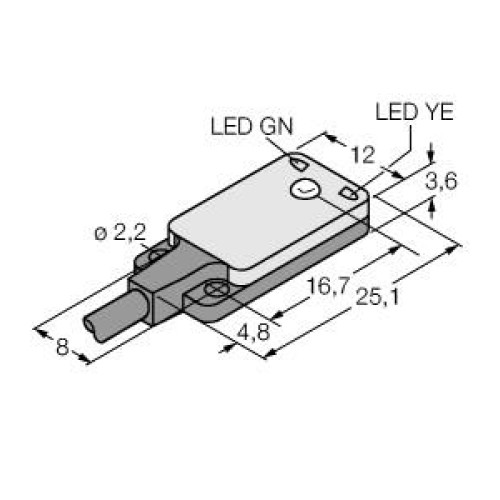

Height of sensor -
25.1 Millimetre
Housing material -
Plastic
Length of sensor -
4.7 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
1200 Millimetre
Rated switching distance -
1200 Millimetre
Reaction time -
1 Millisecond
Type of electric connection -
Cable
Type of light -
Polarity free red light
Wavelength of the sensor -
660 Nanometre
Width sensor -
12 Millimetre
Turck Banner

Availability On Request

£55.35
