3058221

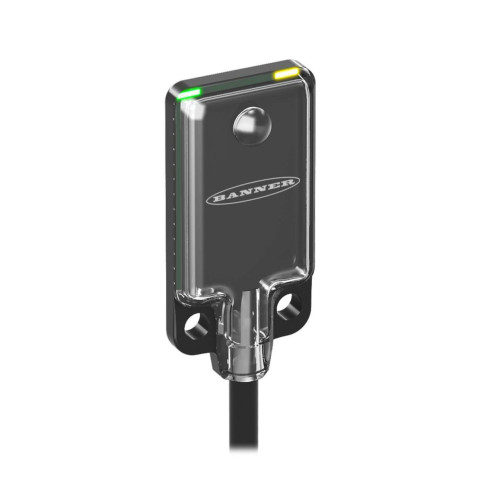

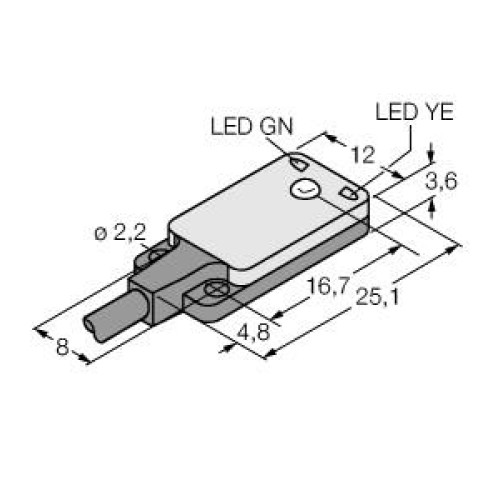

VS2 Series: Sensor Pair, Range: 1.2 m max, Input: 12-24 V dc, Receiver Output: Complementary NPN Dark Operate, 2 m (6.5 ft) Cable

Manufacturer's No: VS2KRN5V     Manufacturer: Turck Banner
VS2 Series: Sensor Pair, Range: 1.2 m max, Input: 12-24 V dc, Receiver Output: Complementary NPN Dark Operate, 2 m (6.5 ft) Cable

Availability Back Order

£135.73
  • Sensor Pair from VS2 Series
  • Range: 1.2 meters maximum
  • Input: 12-24 V DC
  • Receiver Output: Complementary NPN Dark Operate
  • Cable length: 2 meters (6.5 feet)


Product

Manufacturer Material ID -
VS2KRN5V
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
25.1 Millimetre
Housing material -
Plastic
Length of sensor -
4.7 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
1200 Millimetre
Rated switching distance -
1200 Millimetre
Reaction time -
1 Millisecond
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Wavelength of the sensor -
660 Nanometre
Width sensor -
12 Millimetre
Turck Banner

Availability Back Order

£135.73
