Linear Position Sensor, For Analog Monitoring of Pneumatic Cylinders

Manufacturer's No: WIM45-UNTL-LIU5X2-0.3-PSG4M     Manufacturer: Turck Banner
Linear Position Sensor, For Analog Monitoring of Pneumatic Cylinders

Availability On Request

£359.81
  • Linear position sensor for analog monitoring of pneumatic cylinders
  • Operating voltage: 15-30 VDC
  • Measuring range: 45 mm
  • Cable length: 0.3 m
  • Material: Plastic (PA12-GF30)
  • Designed for direct mounting on pneumatic T-groove cylinders
  • Magnetic field status displayed via two LEDs
  • Measured value storage feature
  • Hardly affected by external magnetic fields
  • Output: 4-wire, 15-30 VDC, 0-10 V, and 4-20 mA

Read more

  • Pigtail with male end, M8 x 1


Product

Manufacturer Material ID -
WIM45-UNTL-LIU5X2-0.3-PSG4M
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Cross-/short circuit identification possible -
Degree of protection (IP rating) -
IP67

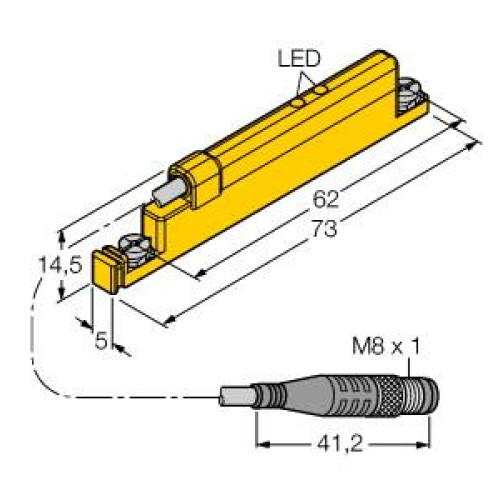

Height of sensor -
14.5 Millimetre
Housing material -
Plastic
Length of sensor -
73 Millimetre
Rated supply voltage at DC -
15 Volt
Type of actuation -
Magnet
Type of electric connection -
Cable with connector
Type of switching output -
Other
Voltage type -
DC
Width sensor -
5 Millimetre
Turck Banner

Availability On Request

£359.81
