161310

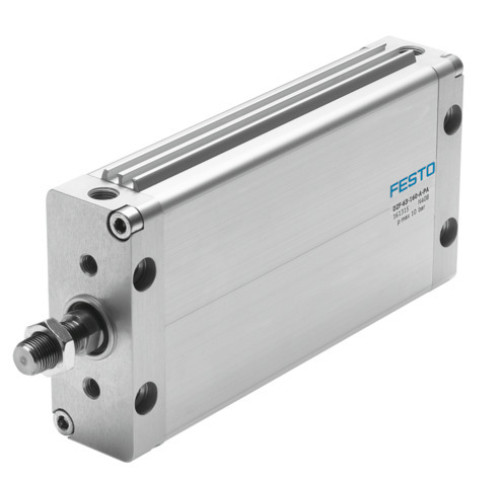

DZF-63-40-A-P-A Flat cylinder

Manufacturer's No: DZF-63-40-A-P-A     Manufacturer: Festo
DZF-63-40-A-P-A Flat cylinder

Availability Available to order

£263.56
  • Type: Flat cylinder DZF-63-40-A-P-A
  • Stroke: 40 mm
  • Piston diameter: 63 mm
  • Max. angular deflection of piston rod: +/- 0.4 deg
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • Ambient temperature: -20°C to 80°C
  • Impact energy in end positions: 0.7 J

Read more

  • Max. torque for protection against torsion: 1.5 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 1682 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 1870 N
  • Moving mass for 0 mm stroke: 337 g
  • Additional moving mass per 10 mm stroke: 25 g
  • Additional weight per 10 mm stroke: 91 g
  • Basic weight for 0 mm stroke: 1379 g
  • Material cover: Die-cast aluminium
  • Material seals: NBR, TPE-U(PU)
  • Material housing: Anodised wrought aluminium alloy
  • Material piston seal: NBR
  • Material piston rod: High-alloy steel
  • Mounting options: Various, with or without additional mounting components
  • Mode of operation: Double-acting
  • Position detection: Via proximity switch
  • Type of mounting: Via female thread, with accessories, either
  • Pneumatic connection: G1/4
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Note on operating and pilot medium: Lubricated operation possible


Product

Manufacturer Material ID -
DZF-63-40-A-P-A
Net Weight -
1.81kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121402
