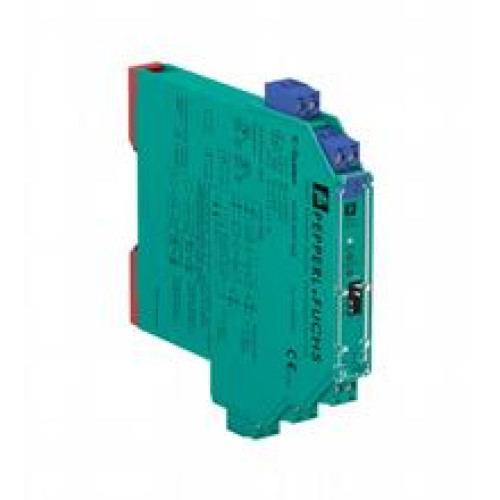

KCD2-SOT-EX2

Switch Amplifier, Device provides intrinsically safe circuits for equipment protection level: Ga , Gb , Gc , Da , Db , Dc , Ma , M

Manufacturer's No: 214244     Manufacturer: Pepperl+Fuchs
Switch Amplifier, Device provides intrinsically safe circuits for equipment protection level: Ga , Gb , Gc , Da , Db , Dc , Ma , Mb, Device suitable for mounting in equipment protection level: Gc, ..

Availability Back Order

£259.60
  • Intrinsically safe circuits for equipment protection levels: Ga, Gb, Gc, Da, Db, Dc, Ma, Mb
  • Suitable for mounting in equipment protection level: Gc
  • Intrinsically safe circuits for division: Div. 1, Div. 2
  • Suitable for mounting in division: Div. 2
  • Safety integrity level: SIL 2
  • Systematic capability: SC 3
  • Signal type: Digital input
  • Number of channels: 2
  • Field-side device: NAMUR sensor, Volt-free contact
  • Control-side type: Transistor (passive)

Read more

  • Transmission direction: For the control
  • Functions: Line fault detection, Reversible direction of effect
  • Power supply: 24 VDC
  • Power supply connection: Terminals or Power Rail
  • Connection type: Screw terminals
  • Housing width: 12.5 mm
  • Ambient temperature: -20 to 60 °C (-4 to 140 °F), extended ambient temperature range up to 70 °C (158 °F)

Accessories



Product

Manufacturer Material ID -
214244
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£259.60
