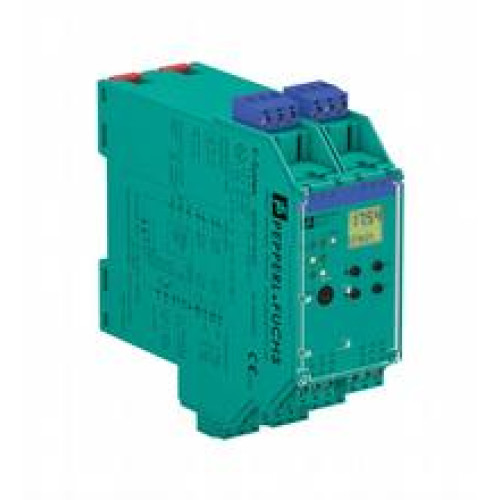

KFD2-UFT-EX2.D

Frequency Converter with Direction and Synchronization Monitor, Device provides intrinsically safe circuits for equipment protecti

Manufacturer's No: 231200     Manufacturer: Pepperl+Fuchs
Frequency Converter with Direction and Synchronization Monitor, Device provides intrinsically safe circuits for equipment protection level: Ga , Gb , Gc , Da , Db , Dc , Ma , Mb, Device suitable fo..

Availability Back Order

£668.448
  • Frequency converter with direction and synchronization monitor
  • Intrinsically safe circuits for equipment protection levels: Ga, Gb, Gc, Da, Db, Dc, Ma, Mb
  • Suitable for mounting in equipment protection level: Gc
  • Intrinsically safe circuits for division: Div. 1, Div. 2
  • Suitable for mounting in division: Div. 2
  • Signal type: Digital input
  • Number of channels: 2
  • Field-side signal: Frequency
  • Field-side device: NAMUR sensor, volt-free contact
  • Control-side signal: 0/4 ... 20 mA

Read more

  • Control-side type: Relay (change-over contact), transistor (passive)
  • Transmission direction: For the control
  • Functions: Fault indication output, frequency conversion, line fault detection, rotation speed monitoring, rotational direction monitoring, slip monitoring, start-up override, synchronization monitoring, trip relay
  • Power supply: 24 VDC
  • Power supply connection: Terminals or Power Rail
  • Connection type: Screw terminals
  • Housing width: 40 mm
  • Ambient temperature: -20 ... 60 °C (-4 ... 140 °F)

Accessories



Product

Manufacturer Material ID -
231200
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85437090
Country of Origin -
SG
UNSPSC -
32151705
