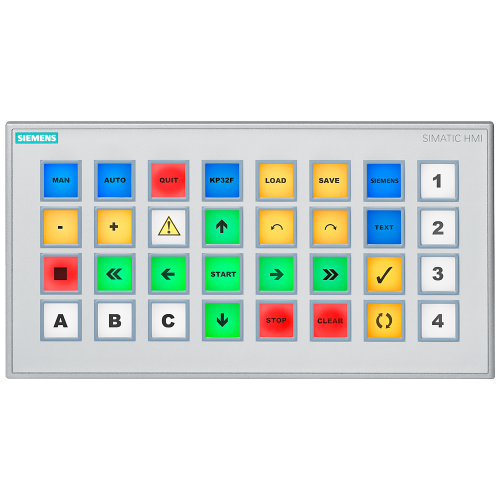

6AV36883EH470AX0

KP32F PN, Key Panel, 32 Keys With Multi-Color Led s, PN Interfaces with Profisafe, 16Di+16DI/DO and 4 Safety DI

Manufacturer's No: 6AV3688-3EH47-0AX0     Manufacturer: Siemens
KP32F PN, Key Panel, 32 Keys With Multi-Color Led s, PN Interfaces with Profisafe, 16Di+16DI/DO and 4 Safety DI

View 3D

Availability In Stock

£1,441.00
  • SIMATIC HMI KP32F PN Key Panel
  • 32 short-stroke keys with multi-colored LEDs
  • PROFINET interfaces with PROFIsafe
  • 16 digital inputs + 16 digital inputs/outputs
  • 4 safety digital input pins
  • 24 V DC loop-through parameterizable as of STEP 7 V5.5

Accessories



Product

Manufacturer Material ID -
6AV3688-3EH47-0AX0
Net Weight -
1.85kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Built-in depth -
69 Millimetre
Operation temperature -
0 Degrees celsius
Number of build in positions for control circuit devices -
0
Number of interfaces PROFINET -
2
Front build in possible -
Degree of protection (IP), front side -
IP65
Front built-in possible -
Height of the front -
155 Millimetre
Number of built-in positions for control circuit devices -
0
Number of buttons -
32
Number of digital inputs -
32
Number of digital outputs -
16
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of indicator lamps -
8
Number of LED colour modes -
5
Operating temperature -
0 Degrees celsius
Recess depth -
37 Millimetre
Suitable for safety functions -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Voltage type of supply voltage -
DC
Width of the front -
295 Millimetre
With parameterizable buttons -
With test for buttons and indicator lamps -

Availability In Stock

£1,441.00
