6AV21283QB570BX0

SIMATIC HMI MTP1500 PRO, for support arm (expandable, round pipe) and Extension Unit, neutral front, 15.6" widescreen TFT dis

Manufacturer's No: 6AV2128-3QB57-0BX0     Manufacturer: Siemens
SIMATIC HMI MTP1500 PRO, for support arm (expandable, round pipe) and Extension Unit, neutral front, 15.6" widescreen TFT display

Availability Back Order

£3,954.00

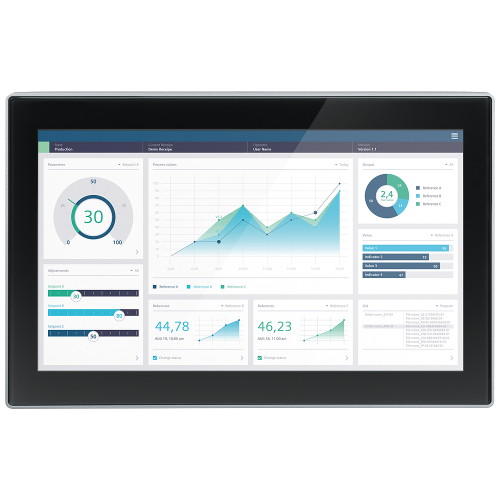

  • SIMATIC HMI MTP1500 PRO
    • 15.6" widescreen TFT display with 16 million colors
    • PROFINET interface
    • Configurable with WinCC Unified Comfort V18
    • Contains open-source software

Accessories



Product

Manufacturer Material ID -
6AV2128-3QB57-0BX0
Net Weight -
6.98kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
39121601

Technical Specification

Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
255 Millimetre
Number of colours of the display -
16777216
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of pixels, horizontal -
1366
Number of pixels, vertical -
768
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
163 Millimetre
Screen diagonal -
15.6 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for TCP/IP -
Type of display -
TFT
Voltage type of supply voltage -
DC
Width of the front -
396 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability Back Order

£3,954.00
