6AV21283UB571BX0

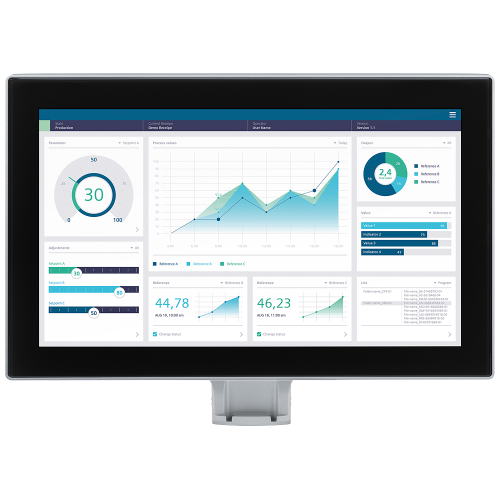

SIMATIC HMI MTP1900 PRO, for supporting foot (expandable, flange at bottom), neutral front, 18.5" widescreen TFT display

Manufacturer's No: 6AV2128-3UB57-1BX0     Manufacturer: Siemens
SIMATIC HMI MTP1900 PRO, for supporting foot (expandable, flange at bottom), neutral front, 18.5" widescreen TFT display

Availability Available to order

£4,664.00
  • SIMATIC HMI MTP1900 PRO
  • 18.5" widescreen TFT display with 16 million colors
  • Expandable with flange at the bottom for supporting foot
  • Neutral front design
  • PROFINET interface
  • Configurable with WinCC Unified Comfort V18
  • Contains open-source software provided free of charge

Accessories



Product

Manufacturer Material ID -
6AV2128-3UB57-1BX0
Net Weight -
7.10kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43201503

Technical Specification

Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
292 Millimetre
Number of colours of the display -
16777216
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of pixels, horizontal -
1920
Number of pixels, vertical -
1080
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
101 Millimetre
Screen diagonal -
18.5 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for TCP/IP -
Type of display -
TFT
Voltage type of supply voltage -
DC
Width of the front -
462 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability Available to order

£4,664.00
