6AV21283GB700AX0

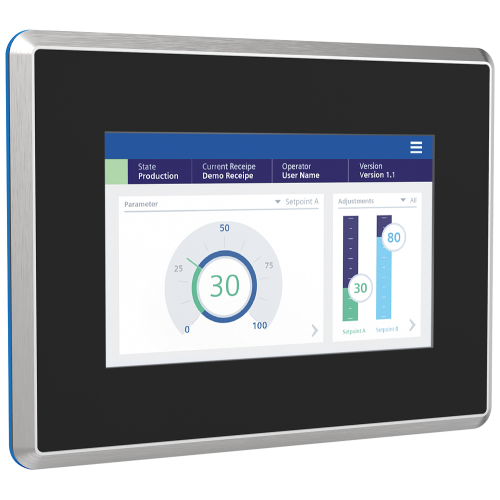

MTP700 Unified Comfort Panel hygienic, neutral design, IP69, stainless steel, 7" widescreen TFT display

Manufacturer's No: 6AV2128-3GB70-0AX0     Manufacturer: Siemens
MTP700 Unified Comfort Panel hygienic, neutral design, IP69, stainless steel, 7" widescreen TFT display

Availability Back Order

£1,615.00
  • 7" widescreen TFT display with 16 million colors
  • Hygienic design with IP69 rating and stainless steel construction
  • Blue FDA-compliant gasket for increased impact protection
  • Touch operation for user-friendly interface
  • Compliant with directives DIN EN 1672-2 and FDA 21 CFR 177.2006
  • PROFINET interface for connectivity
  • Configurable with WinCC Unified Comfort V17
  • Includes open-source software at no additional cost

Accessories



Product

Manufacturer Material ID -
6AV2128-3GB70-0AX0
Net Weight -
1.93kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43201503

Technical Specification

Additional software components, loadable -
Height of the front -
169.6 Millimetre
Number of colours of the display -
16777216
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of pixels, horizontal -
800
Number of pixels, vertical -
480
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Recess depth -
66 Millimetre
Screen diagonal -
7 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for TCP/IP -
Type of display -
TFT
Voltage type of supply voltage -
DC
Width of the front -
225.6 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -
