6AV21283KB400AX0

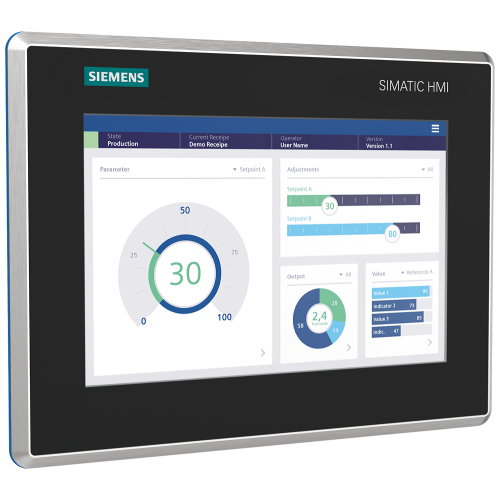

SIMATIC HMI MTP1000 Unified Comfort hygienic IP69, FDA, shatter protection

Manufacturer's No: 6AV2128-3KB40-0AX0     Manufacturer: Siemens
SIMATIC HMI MTP1000 Unified Comfort hygienic IP69, FDA, shatter protection

Availability Back Order

£2,395.00
  • SIMATIC HMI MTP1000 Unified Comfort Panel
  • 10.1" widescreen TFT display with 16 million colors
  • Hygienic design with IP69 stainless steel casing
  • Blue FDA-compliant gasket for increased impact protection
  • Splinter protection display front according to directives DIN EN 1672-2, FDA 21 CFR 177.2006
  • PROFINET interface
  • Configurable with WinCC Unified Comfort V17
  • Contains open-source software
  • Blu-Ray with additional software included

Accessories

Product video
Product video


Product

Manufacturer Material ID -
6AV2128-3KB40-0AX0
Net Weight -
2.65kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43201503

Technical Specification

Additional software components, loadable -
Height of the front -
217 Millimetre
Number of colours of the display -
16777216
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
67 Millimetre
Screen diagonal -
10.1 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for TCP/IP -
Type of display -
TFT
Voltage type of supply voltage -
DC
Width of the front -
292 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability Back Order

£2,395.00
