6AV21283UB700AX0

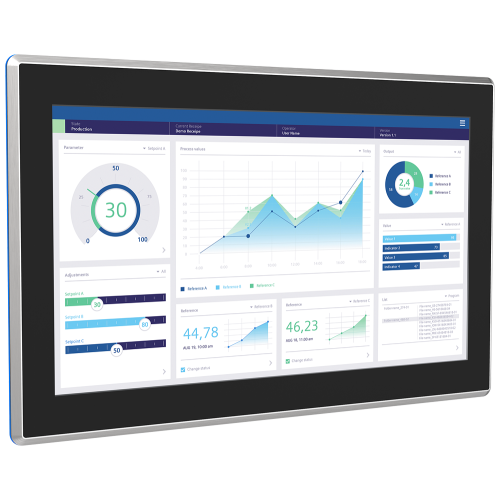

MTP1900 Unified Comfort Panel hygienic, neutral design, IP69, stainless steel, 18.5" widescreen TFT display

Manufacturer's No: 6AV2128-3UB70-0AX0     Manufacturer: Siemens
MTP1900 Unified Comfort Panel hygienic, neutral design, IP69, stainless steel, 18.5" widescreen TFT display

Availability Back Order

£4,678.00
  • SIMATIC HMI MTP1900 Unified Comfort Panel
  • 18.5" widescreen TFT display with 16 million colors
  • Hygienic design with IP69 rating and stainless steel construction
  • Blue FDA-compliant gasket for increased impact protection
  • Touch operation interface
  • Compliant with directives DIN EN 1672-2, FDA 21 CFR 177.2006
  • PROFINET interface
  • Configurable with WinCC Unified Comfort V16
  • Contains open-source software
  • Free software provided on enclosed Blu-Ray

Accessories

Product video
Product video


Product

Manufacturer Material ID -
6AV2128-3UB70-0AX0
Net Weight -
6.63kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43201503

Technical Specification

Additional software components, loadable -
Height of the front -
309 Millimetre
Number of colours of the display -
16777216
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of pixels, horizontal -
1920
Number of pixels, vertical -
1080
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
79 Millimetre
Screen diagonal -
18.5 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for TCP/IP -
Type of display -
TFT
Voltage type of supply voltage -
DC
Width of the front -
479 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability Back Order

£4,678.00
