6AV21283XB700AX0

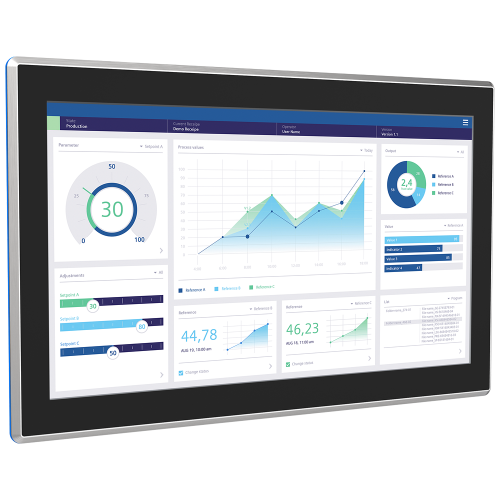

MTP2200 Unified Comfort Panel hygienic, neutral design, IP69, stainless steel, 21.5" widescreen TFT display

Manufacturer's No: 6AV2128-3XB70-0AX0     Manufacturer: Siemens
MTP2200 Unified Comfort Panel hygienic, neutral design, IP69, stainless steel, 21.5" widescreen TFT display

Availability Available to order

£5,443.00
  • Model: SIMATIC HMI MTP2200 Unified Comfort Panel
  • Design: Hygienic, neutral design with stainless steel construction
  • Display: 21.5" widescreen TFT display with 16 million colors
  • Protection: IP69 rating, increased impact protection with splinter protection display front
  • Compliance: Blue FDA-compliant gasket, meets directives DIN EN 1672-2, FDA 21 CFR 177.2006
  • Interface: PROFINET interface
  • Software: Configurable with WinCC Unified Comfort V17, contains open-source software
  • Additional: Free Blu-Ray with software included

Accessories



Product

Manufacturer Material ID -
6AV2128-3XB70-0AX0
Net Weight -
8.15kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43201503

Technical Specification

Additional software components, loadable -
Height of the front -
358 Millimetre
Number of colours of the display -
16777216
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of pixels, horizontal -
1920
Number of pixels, vertical -
1080
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
79 Millimetre
Screen diagonal -
21.5 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for TCP/IP -
Type of display -
TFT
Voltage type of supply voltage -
DC
Width of the front -
556 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability Available to order

£5,443.00
