7541188

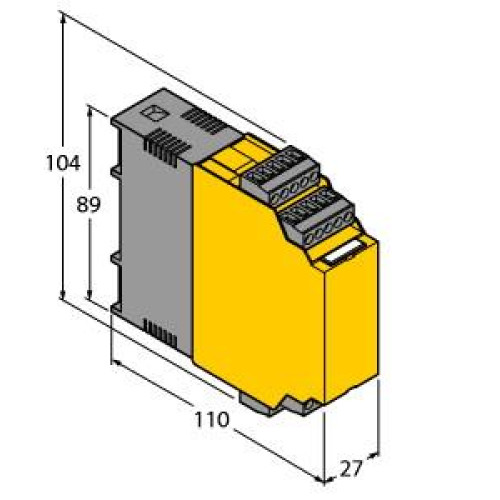

Isolating switching amplifier - Input: 4 NAMUR, Output : 5 relays (1 alarm), mounting in zone 2 possible (ATEX, FM/CSA, IECEx, GOS

Manufacturer's No: IM1-451Ex-R     Manufacturer: Turck Banner
Isolating switching amplifier - Input: 4 NAMUR, Output : 5 relays (1 alarm), mounting in zone 2 possible (ATEX, FM/CSA, IECEx, GOST)

Availability Back Order

£377.78
  • Isolating switching amplifier
  • Input: 4 NAMUR
  • Output: 5 relays (1 alarm)
  • Mounting in zone 2 possible (ATEX, FM/CSA, IECEx, GOST)
  • 4-channel
  • Intrinsically safe input circuits
  • Adjustable signal flow (NO/NC)
  • Five relay outputs with one N/O contact each
  • Common alarm output
  • Removable terminal blocks

Read more

  • Power supply: 20-250VAC / 20-125VDC


Product

Manufacturer Material ID -
IM1-451Ex-R
Net Weight -
0.20kg

Additional Product Information

Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

-
Turck Banner
Degree of protection (IP rating) -
IP20
Depth -
104 Millimetre
Height -
110 Millimetre
Mounting method -
Snap mounting support rail
Number of inputs, according to NAMUR -
4
Operating temperature -
-25 Degrees celsius
Power consumption -
3 Watt
Rated operation frequency -
40 Hertz
Rated supply voltage at AC -
20 Volt
Rated supply voltage at DC -
20 Volt
Switching current -
2 Ampere
Switching frequency -
10 Hertz
Switching voltage -
250 Volt
Type of electric connection -
Screw connection
Width -
27 Millimetre
Turck Banner

Availability Back Order

£377.78
