7506632

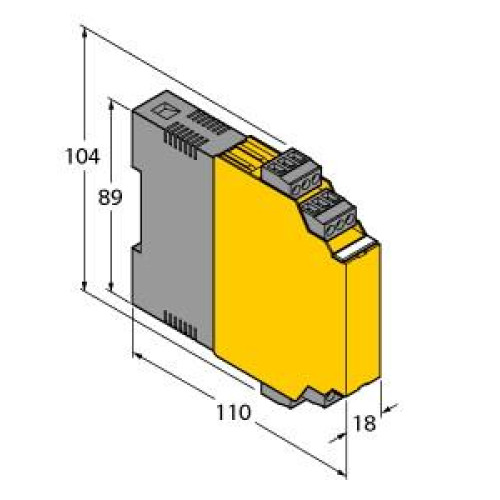

Temperature measuring amplifier - Input: Ni/Pt100 or thermo-elements or mV-input, Output : 1 x 0/4-20 mA, 1 relay (N.O.), prog via

Manufacturer's No: IM34-12Ex-CRi     Manufacturer: Turck Banner
Temperature measuring amplifier - Input: Ni/Pt100 or thermo-elements or mV-input, Output : 1 x 0/4-20 mA, 1 relay (N.O.), prog via PC (FDT/DTM), mounting inzone 2 possible (ATEX, FM/CSA, IECEx, GOST)

Availability Back Order

£356.69
  • Input options: Ni/Pt100, thermo-elements, mV-input
  • Output: 1 x 0/4-20 mA, 1 relay (N.O.)
  • Programmable via PC (FDT/DTM)
  • Mounting in zone 2 possible (ATEX, FM/CSA, IECEx, GOST)
  • Intrinsically safe input circuits EEx ia
  • Application area according to ATEX: II (1) GD
  • Input for Pt100/Ni100 resistors, thermoelements, and millivolt signals in 2-, 3-, or 4-wire technology
  • Parameterization via PC software TM
  • Outputs: 0/4-20 mA, limit value relay
  • Selectable line monitoring for wire-break/short-circuit (ON/OFF mode)

Read more

  • Removable terminal blocks
  • Universal operating voltage: 20-250VAC/20-125VDC
  • Galvanic isolation of input circuits to output circuits and supply voltage


Product

Manufacturer Material ID -
IM34-12Ex-CRi
Net Weight -

Additional Product Information

Minimum Order Quantity -
1
UNSPSC -
39121018

Technical Specification

-
Turck Banner
Ambient temperature -
-25 Degrees celsius
Modular version -
Weight -
164 Kilogram
With switching output -
Turck Banner

Availability Back Order

£356.69
Sign in or Register for customer prices.

Additional Information

Data Sheets
