7506631 {T}

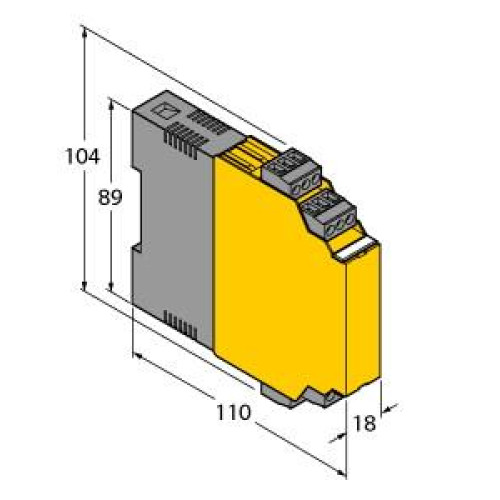

Temperature measuring amplifier, 1-channel, Operating voltage 20…250 VAC

Manufacturer's No: IM34-12EX-RI     Manufacturer: Turck Banner
Temperature measuring amplifier, 1-channel, Operating voltage 20…250 VAC

Availability Available to order

£441.46
  • Temperature measuring amplifier, 1-channel
  • Operating voltage: 20-250 VAC / 20-125 VDC
  • Input for Pt100/Ni100 resistors, thermocouples, and millivolt signals in 2, 3, or 4-wire technology
  • Output circuit: 0/4-20 mA with limit value relay
  • Upper and lower limit adjustable via rotary coding switch
  • Complete galvanic isolation
  • Input reverse-polarity protected
  • ATEX, IECEx, CFMUS, UL, TR CU, INMETRO, CCOE, NEPSI, KOSHA certified
  • Installation in zone 2


Product

Manufacturer Material ID -
IM34-12EX-RI
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121018

Technical Specification

Ambient temperature -
-25 Degrees celsius
Modular version -
Weight -
157 Kilogram
With switching output -
Turck Banner

Availability Available to order

£441.46
