804556 {B}

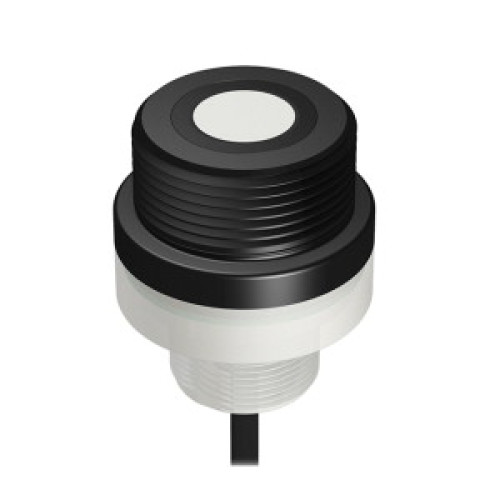

K50 Ultrasonic Sensor, 1-Wire Serial Interface, Range: 100 - 1 m (3.94 in to 39.4 in), 230 (9 in) QD Cable

Manufacturer's No: K50UX1ARA     Manufacturer: Turck Banner
K50 Ultrasonic Sensor, 1-Wire Serial Interface, Range: 100 - 1 m (3.94 in to 39.4 in), 230 (9 in) QD Cable

Availability Available to order

£382.17
  • Ultrasonic sensor in diffuse mode
  • Serial interface for connection to DX80 Radio Node
  • Operating voltage: 3.5-5.5 VDC or 10-30 VDC
  • Max. range: 1000 mm
  • Range: 10-100 cm
  • Sound frequency: 224 kHz
  • Resolution: > 1 mm
  • Cable length: 0.23 m with male connector, M12 x 1, 5-pin
  • Operating temperature: -40 to +70 °C
  • Protection class: IP67

Read more

  • 1-Wire Serial Interface
  • Compatible with DX80 nodes DX80N2X1S-P6 and DX80N2Q45U


Product

Manufacturer Material ID -
K50UX1ARA
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius

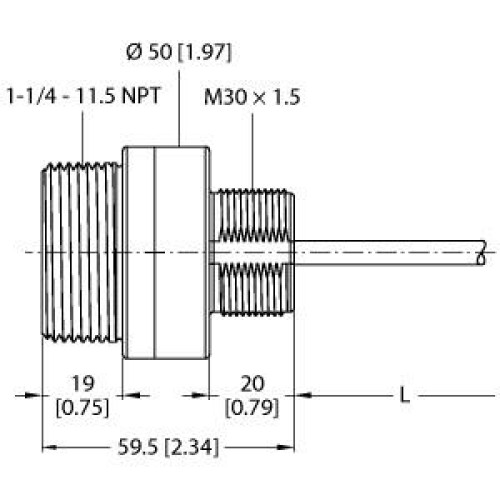

Diameter sensor -
50 Millimetre
Housing material -
Plastic
Length of sensor -
59.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
100 Millimetre
Standard for interfaces -
Serial
Supply voltage -
3.5 Volt
Type of electric connection -
Cable with connector
Turck Banner

Availability Available to order

£382.17
