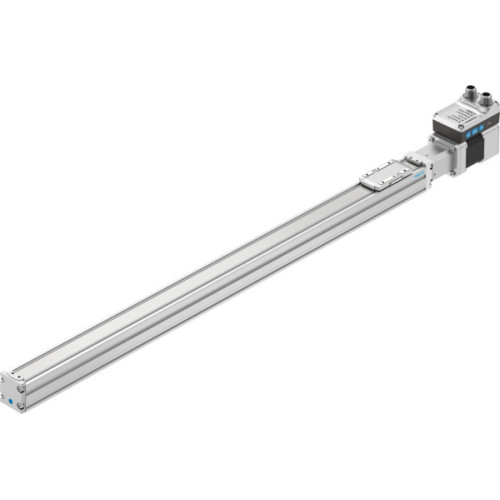

ELGS-BS-KF-32-500-8P-ST-M-H1-PLK-AA Ball screw axis unit

Manufacturer's No: ELGS-BS-KF-32-500-8P-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-BS-KF-32-500-8P-ST-M-H1-PLK-AA Ball screw axis unit

Availability On Request

£1,256.98
  • Product: ELGS-BS-KF-32-500-8P-ST-M-H1-PLK-AA Ball screw axis unit
  • Working Stroke: 500 mm
  • Size: 32
  • Spindle Diameter: 8 mm
  • Spindle Pitch: 8 Y13
  • Design: Electromechanical linear axis with ball screw and integrated drive
  • Motor Type: Stepper motor
  • Mounting Position: Optional
  • Guide: Recirculating ball bearing guide
  • Position Detection: Motor encoder and proximity switch

Read more

  • Rotor Position Sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature Monitoring: Switch-off for excessive temperature and integrated CMOS temperature sensor
  • Additional Functions: User interface and integrated end-position sensing
  • Display: LED
  • Max. Acceleration: 5 m/s²
  • Max. Speed: 0.18 m/s
  • Repetition Accuracy: ±0.015 mm
  • Duty Cycle: 100%
  • Insulation Protection Class: B
  • Nominal Voltage: 24 V
  • Nominal Current: 3 A
  • Parameterisation Interface: IO-Link and User interface
  • Rotor Position Transducer Resolution: 16 BIT
  • Vibration Resistance: Transport application test with severity level 1
  • Shock Resistance: Shock test with severity level 1
  • Cleanroom Class: Class 7 according to ISO 14644-1
  • Storage Temperature: -20°C to 60°C
  • Relative Air Humidity: 0 - 90%
  • Degree of Protection: IP40
  • Protection Class: III
  • Ambient Temperature: 0°C to 50°C
  • Max. Force: 356 N (Fy and Fz)
  • Max. Force Total Axis: 150 N (Fy) and 300 N (Fz)
  • Max. Moment: 1.3 NM (Mx) and 1.1 NM (My, Mz)
  • Max. Moment Total Axis: 1.3 NM (Mx) and 1.1 NM (My, Mz)
  • Reference Service Life: 5000 KM
  • Maintenance Interval: Life-time lubrication
  • Product Weight: 1789 g
  • Dynamic Deflection: 0.05% of the axis length, max. 0.5 mm
  • Static Deflection: 0.1% of the axis length
  • Number of Digital Logic Outputs: 2 (24 V DC)
  • Number of Digital Logic Inputs: 2
  • IO-Link Support: Yes
  • IO-Link Protocol Version: Device V 1.1
  • Max. Cable Length: 15 m (outputs and inputs), 20 m with IO-Link operation
  • Switching Logic: PNP (positive switching)
  • Material: Painted die-cast aluminum, anodized wrought aluminum alloy, high-alloy stainless steel, steel


Product

Manufacturer Material ID -
ELGS-BS-KF-32-500-8P-ST-M-H1-PLK-AA
Net Weight -

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
