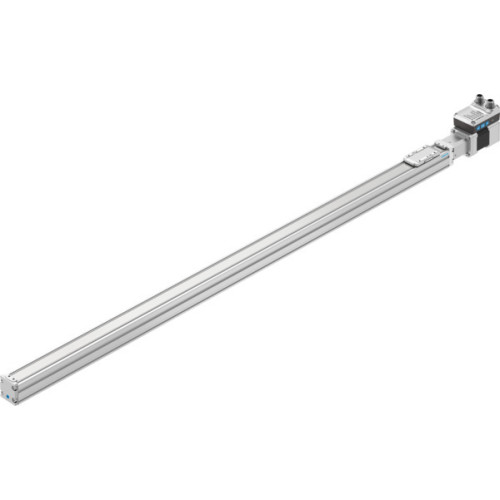

ELGS-BS-KF-32-800-8P-ST-M-H1-PLK-AA Ball screw axis unit

Manufacturer's No: ELGS-BS-KF-32-800-8P-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-BS-KF-32-800-8P-ST-M-H1-PLK-AA Ball screw axis unit

Availability On Request

£1,320.52
  • ELGS-BS-KF-32-800-8P-ST-M-H1-PLK-AA Ball screw axis unit
  • Working stroke: 800 mm
  • Size: 32
  • Spindle diameter: 8 mm
  • Spindle pitch: 8 Y13
  • Design: Electromechanical linear axis with ball screw and integrated drive
  • Motor type: Stepper motor
  • Spindle type: Ball screw drive
  • Position detection: Motor encoder, proximity switch
  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle

Read more

  • Temperature monitoring: Switch-off for excessive temperature, integrated precise CMOS temperature sensor
  • Additional functions: User interface, integrated end-position sensing
  • Display: LED
  • Max. acceleration: 5 m/s²
  • Max. speed: 0.18 m/s
  • Repetition accuracy: ±0.015 mm
  • Digital logic outputs: Configurable, not galvanically isolated
  • Duty cycle: 100%
  • Insulation protection class: B
  • Max. current digital logic outputs: 100 mA
  • Max. current consumption: 3000 A
  • Nominal voltage DC: 24 V, Nominal current: 3 A
  • Parameterisation interface: IO-Link, User interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Power supply: Plugs, M12x1, T-coded according to EN 61076-2-111, 4 pins/wires, pattern: 995989
  • Approvals: RCM trademark, KC-EMV, CE mark (EU EMC Directive, EU RoHS Directive), UKCA marking (UK EMC and RoHS instructions)
  • Vibration resistance: Severity level 1, EN 60068-2-6
  • Shock resistance: Severity level 1, EN 60068-2-27
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 7, ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0 - 90%
  • Degree of protection: IP40, Protection class: III
  • Ambient temperature: 0°C to 50°C
  • 2nd moment of area Iy: 38000 Y12, Iz: 45000 Y12
  • Max. force Fy: 356 N, Fz: 356 N, Fy total axis: 150 N, Fz total axis: 300 N
  • Max. moment Mx: 1.3 Nm, My: 1.1 Nm, Mz: 1.1 Nm, Mx total axis: 1.3 Nm, My total axis: 1.1 Nm, Mz total axis: 1.1 Nm
  • Max. feed force Fx: 40 N
  • Reference value effective load: 2 kg (horizontal and vertical)
  • Torsional mass moment of inertia: 1700 Y12
  • Feed constant: 8 Y13
  • Reference service life: 5000 km, Maintenance interval: Life-time lubrication
  • Moving mass: 83.4 g, Product weight: 2329 g
  • Dynamic deflection: 0.05% of axis length, max. 0.5 mm
  • Static deflection: 0.1% of axis length
  • Number of digital logic outputs 24 V DC: 2, Number of digital logic inputs: 2
  • Logic input based on IEC 61131-2, type 1, Working range: 24 V
  • IO-Link support: Yes, Protocol version: Device V 1.1, Communication mode: COM3 (230.4 kBaud)
  • IO-Link ports: 1, Process data length: 2 bytes, Min. cycle time: 1 ms, Data storage required: 500 KB
  • Max. cable length: 15 m (outputs and inputs), 20 m with IO-Link operation
  • Switching logic: PNP (positive switching)
  • Connection technology: Plugs, M12x1, A-coded according to EN 61076-2-101, 8 pins/wires, plug pattern: 992264
  • Mounting: Via female thread, centring sleeve and pin, with accessories
  • Materials: Painted die-cast aluminium (end cap, drive cover), Anodised wrought aluminium alloy (profile), High-alloy stainless steel (cover tape), Steel (guide slide, guide rail), Die-cast aluminium (slide), Steel (spindle nut, spindle)
  • RoHS-compliant materials
