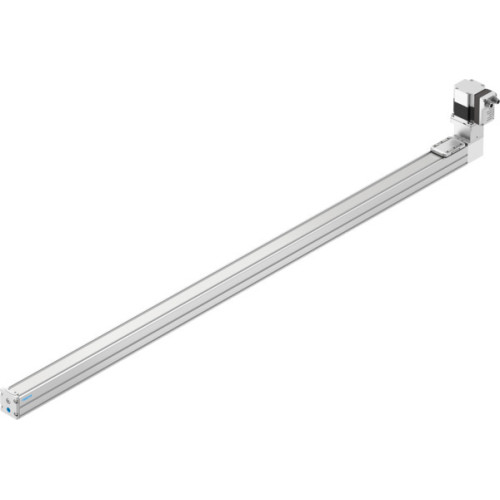

ELGS-TB-KF-45-1200-ST-M-H1-PLK-AA Toothed belt axis unit

Manufacturer's No: ELGS-TB-KF-45-1200-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-TB-KF-45-1200-ST-M-H1-PLK-AA Toothed belt axis unit

Availability On Request

£1,216.69
  • Toothed belt axis unit ELGS-TB-KF-45-1200-ST-M-H1-PLK-AA
  • Effective diameter of drive pinion: 19.1 mm
  • Working stroke: 1200 mm
  • Size: 45
  • Toothed-belt stretch: 0.187%
  • Toothed-belt pitch: 2 mm
  • Mounting position: Horizontal
  • Design: Electromechanical linear axis with toothed belt and integrated drive
  • Type of motor: Stepper motor
  • Position detection: Motor encoder, proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature, integrated precise CMOS temperature sensor
  • Additional functions: User interface, integrated end-position sensing
  • Max. acceleration: 6 m/s²
  • Max. speed: 1.2 m/s
  • Repetition accuracy: ±0.1 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Nominal voltage DC: 24 V
  • Nominal current: 5.3 A
  • Parameterisation interface: IO-Link, user interface
  • Rotor position transducer resolution: 16 bit
  • Power supply: Plugs, M12x1 T-coded
  • Approval: RCM trademark, KC-EMV, CE mark, UKCA marking
  • Vibration resistance: Transport application test level 1, shock resistance level 1
  • Cleanroom class: Class 7
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0 - 90%
  • Degree of protection: IP40, Protection class: III
  • Ambient temperature: 0°C to 50°C
  • Max. force: Fy 880 N, Fz 880 N, Fy total axis 300 N, Fz total axis 600 N
  • Max. moment: Mx 5.5 Nm, My 4.7 Nm, Mz 4.7 Nm
  • Reference service life: 5000 km, Maintenance interval: Life-time lubrication
  • Moving mass: 169 g, Weight of slide: 55 g, Product weight: 4550 g
  • Dynamic deflection: 0.05% of axis length, max 0.5 mm
  • Static deflection: 0.1% of axis length
  • Number of digital logic outputs: 2, Number of digital logic inputs: 2
  • IO-Link support, Protocol version: Device V 1.1, Communication mode: COM3
  • Max. cable length: 15 m outputs, 15 m inputs, 20 m with IO-Link operation
  • Switching logic: PNP (positive switching)
  • Material: End cap - Painted die-cast aluminium, Profile - Anodised wrought aluminium alloy, Cover tape - Stainless steel strip, Drive cover - Painted die-cast aluminium, Guide slide and rail - Tempered steel, Pulleys - High-alloy stainless steel, Slide - Die-cast aluminium, Toothed belt - Polychloroprene with glass fibre


Product

Manufacturer Material ID -
ELGS-TB-KF-45-1200-ST-M-H1-PLK-AA
Net Weight -

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
Festo

Availability On Request

£1,216.69
Sign in or Register for customer prices.
