ELGS-TB-KF-45-600-ST-M-H1-PLK-AA Toothed belt axis unit

Manufacturer's No: ELGS-TB-KF-45-600-ST-M-H1-PLK-AA     Manufacturer: Festo

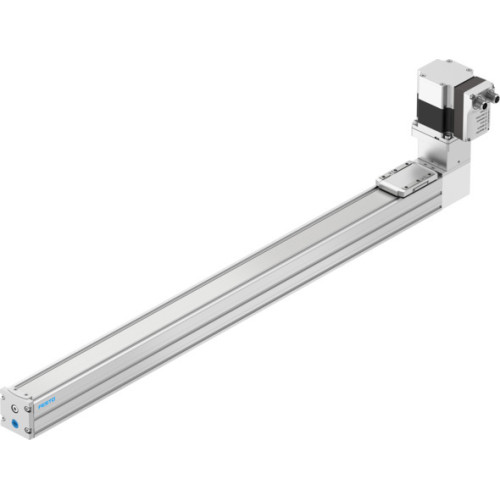

ELGS-TB-KF-45-600-ST-M-H1-PLK-AA Toothed belt axis unit

Availability On Request

£1,114.21
  • Toothed belt axis unit
  • Effective diameter of drive pinion: 19.1 mm
  • Working stroke: 600 mm
  • Size: 45
  • Toothed-belt stretch: 0.187%
  • Toothed-belt pitch: 2 mm
  • Mounting position: Horizontal
  • Design: Electromechanical linear axis with toothed belt and integrated drive
  • Type of motor: Stepper motor
  • Position detection: Motor encoder and via proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature and integrated precise CMOS temperature sensor with analogue output
  • Additional functions: User interface and integrated end-position sensing
  • Display: LED
  • Max. acceleration: 6 m/s²
  • Max. speed: 1.2 m/s
  • Repetition accuracy: ±0.1 mm
  • Features of digital logic outputs: Configurable and not galvanically isolated
  • Duty cycle: 100%
  • Insulation protection class: B
  • Max. current digital logic outputs: 100 mA
  • Max. current consumption: 5.3 A
  • Nominal voltage DC: 24 V
  • Parameterisation interface: IO-Link and user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Protection class: III
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Storage temperature: -20°C to 60°C
  • Max. force Fy: 880 N, Fz: 880 N, Fy total axis: 300 N, Fz total axis: 600 N
  • Max. moment Mx: 5.5 Nm, My: 4.7 Nm, Mz: 4.7 Nm, Mx total axis: 5.5 Nm, My total axis: 4.7 Nm, Mz total axis: 4.7 Nm
  • Max. feed force Fx: 75 N
  • Reference value effective load, horizontal: 2.5 kg
  • Torsional mass moment of inertia It: 8500 Y12
  • Feed constant: 60 Y13
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 169 g, Moving mass for 0 mm stroke: 169 g
  • Weight of slide: 55 g, Product weight: 3170 g
  • Dynamic deflection (moving load): 0.05% of the axis length, max. 0.5 mm
  • Static deflection (load in standstill): 0.1% of the axis length
  • Number of digital logic outputs 24 V DC: 2, Number of digital logic inputs: 2
  • IO-Link, SIO-Mode support: Yes
  • IO-Link, Protocol version: Device V 1.1
  • IO-Link, communication mode: COM3 (230.4 kBaud)
  • IO-Link, Port class: A, Number of ports: 1
  • IO-Link, Min. cycle time: 1 ms, Data storage required: 500 KB
  • Max. cable length: 15 m outputs, 15 m inputs, 20 m with IO-Link operation
  • Switching logic for outputs: PNP (positive switching), for inputs: PNP (positive switching)
  • Material end cap: Painted die-cast aluminium, profile: Anodised wrought aluminium alloy
  • Material cover tape: Stainless steel strip, drive cover: Painted die-cast aluminium
  • Material guide slide: Tempered steel, guide rail: Tempered steel
  • Material pulleys: High-alloy stainless steel, slide: Die-cast aluminium, toothed belt: Polychloroprene with glass fibre
