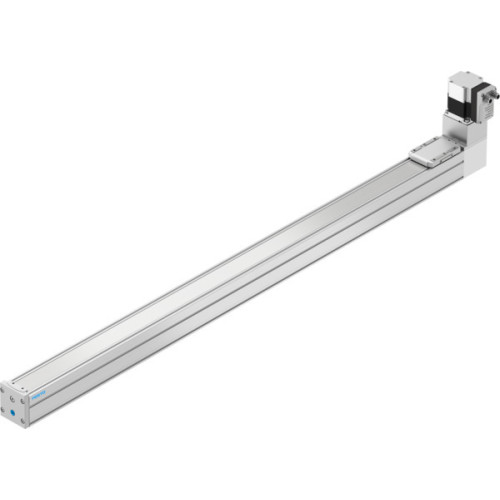

ELGS-TB-KF-60-1000-ST-M-H1-PLK-AA Toothed belt axis unit

Manufacturer's No: ELGS-TB-KF-60-1000-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-TB-KF-60-1000-ST-M-H1-PLK-AA Toothed belt axis unit

Availability On Request

£1,233.76
  • Toothed belt axis unit
  • Effective diameter of drive pinion: 24.83 mm
  • Working stroke: 1000 mm
  • Size: 60
  • Toothed-belt stretch: 0.124%
  • Toothed-belt pitch: 3 mm
  • Mounting position: Horizontal
  • Design: Electromechanical linear axis with toothed belt and integrated drive
  • Type of motor: Stepper motor
  • Position detection: Motor encoder and via proximity switch

Read more

  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature and integrated precise CMOS temperature sensor with analogue output
  • Additional functions: User interface and integrated end-position sensing
  • Display: LED
  • Max. acceleration: 6 m/s²
  • Max. speed: 1.3 m/s
  • Repetition accuracy: ±0.1 mm
  • Features of digital logic outputs: Configurable, not galvanically isolated
  • Duty cycle: 100%
  • Insulation protection class: B
  • Max. current digital logic outputs: 100 mA
  • Max. current consumption: 5.3 A
  • Nominal voltage DC: 24 V
  • Parameterisation interface: IO-Link and user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Power supply: Plugs, M12x1, T-coded according to EN 61076-2-111, 4 pins/wires, connection pattern: 995989
  • Approval: RCM trademark, KC mark: KC-EMV, CE mark to EU EMC Directive and EU RoHS Directive, UKCA marking to UK instructions for EMC and UK RoHS instructions
  • Vibration resistance: Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
  • Shock resistance: Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0 - 90%
  • Degree of protection: IP40, Protection class: III
  • Ambient temperature: 0°C to 50°C, Power must be reduced by 2% per K at ambient temperatures above 30°C
  • Max. force and moment values for different axes
  • Torsional mass moment of inertia, feed constant, reference service life, maintenance interval, and other mechanical specifications
  • IO-Link communication details, cable lengths, switching logic, and connection technologies
  • Material specifications for various components
