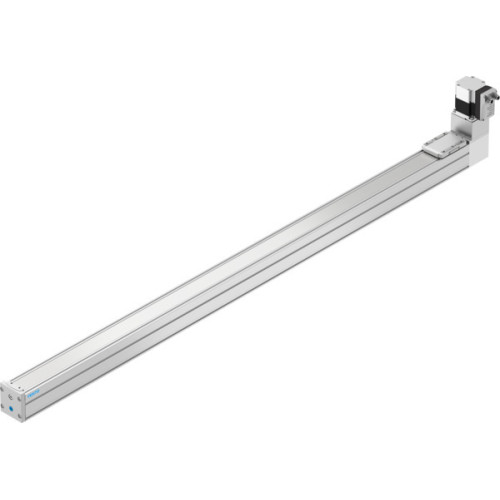

ELGS-TB-KF-60-1200-ST-M-H1-PLK-AA Toothed belt axis unit

Manufacturer's No: ELGS-TB-KF-60-1200-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-TB-KF-60-1200-ST-M-H1-PLK-AA Toothed belt axis unit

Availability On Request

£1,275.44
  • Toothed belt axis unit with effective diameter of drive pinion: 24.83 mm
  • Working stroke: 1200 mm with size 60 and 0 mm stroke reserve
  • Toothed-belt stretch: 0.124% with toothed-belt pitch of 3 mm
  • Mounting position: Horizontal with recirculating ball bearing guide
  • Electromechanical linear axis design with integrated drive and stepper motor
  • Position detection via motor encoder and proximity switch
  • Rotor position sensor: Absolute single-turn encoder using magnetic measuring principle
  • Temperature monitoring: Switch-off for excessive temperature and integrated CMOS temperature sensor
  • Additional functions: User interface, integrated end-position sensing, LED display, and ready status indication
  • Max. acceleration: 6 m/s² with max. speed of 1.3 m/s

Read more

  • Repetition accuracy: ±0.1 mm
  • Configurable digital logic outputs with 100 mA max. current and 100% duty cycle
  • Insulation protection class: B with 24 V nominal voltage and 5.3 A nominal current
  • Parameterisation interface: IO-Link and user interface with 16-bit rotor position transducer resolution
  • Approval: RCM trademark, KC-EMV mark, and CE mark for EU EMC and RoHS Directives
  • Vibration resistance: Transport application test with severity level 1 and shock resistance test with severity level 1
  • Cleanroom class: Class 7 according to ISO 14644-1 with IP40 protection class and III protection class
  • Storage temperature: -20°C to 60°C with 0-90% relative air humidity
  • Max. forces and moments for various axes and theoretical life values
  • Reference service life: 5000 km with life-time lubrication maintenance interval
  • Moving mass, weight, and deflection specifications
  • IO-Link communication details, cable lengths, and switching logic
  • Material composition including die-cast aluminum, stainless steel, tempered steel, and polychloroprene with glass fiber


Product

Manufacturer Material ID -
ELGS-TB-KF-60-1200-ST-M-H1-PLK-AA
Net Weight -

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
