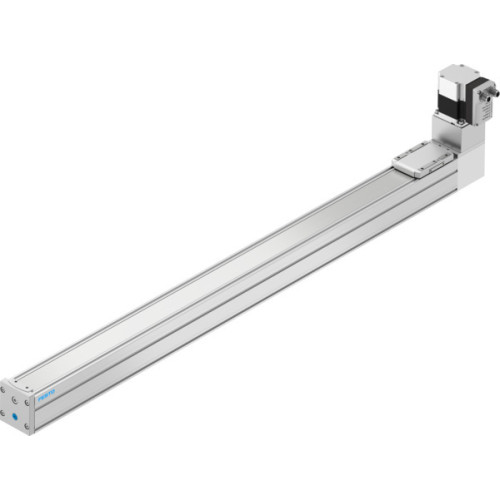

ELGS-TB-KF-60-800-ST-M-H1-PLK-AA Toothed belt axis unit

Manufacturer's No: ELGS-TB-KF-60-800-ST-M-H1-PLK-AA     Manufacturer: Festo
ELGS-TB-KF-60-800-ST-M-H1-PLK-AA Toothed belt axis unit

Availability On Request

£1,192.08
  • Toothed belt axis unit ELGS-TB-KF-60-800-ST-M-H1-PLK-AA
  • Effective diameter of drive pinion: 24.83 mm
  • Working stroke: 800 mm
  • Toothed-belt pitch: 3 mm
  • Max. acceleration: 6 m/s²
  • Max. speed: 1.3 m/s
  • Repetition accuracy: ±0.1 mm
  • Max. force Fy: 3641 N
  • Max. force Fz: 3641 N
  • Max. moment Mx: 29.1 Nm

Read more

  • Max. moment My: 31.8 Nm
  • Max. moment Mz: 31.8 Nm
  • Nominal voltage DC: 24 V
  • Nominal current: 5.3 A
  • Max. current digital logic outputs: 100 mA
  • Max. current consumption: 5300 A
  • Storage temperature: -20°C to 60°C
  • Degree of protection: IP40
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Material profile: Anodised wrought aluminium alloy
  • Material cover tape: Stainless steel strip
  • Material toothed belt: Polychloroprene with glass fibre


Product

Manufacturer Material ID -
ELGS-TB-KF-60-800-ST-M-H1-PLK-AA
Net Weight -
6.40kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
Festo

Availability On Request

£1,192.08
