50148175

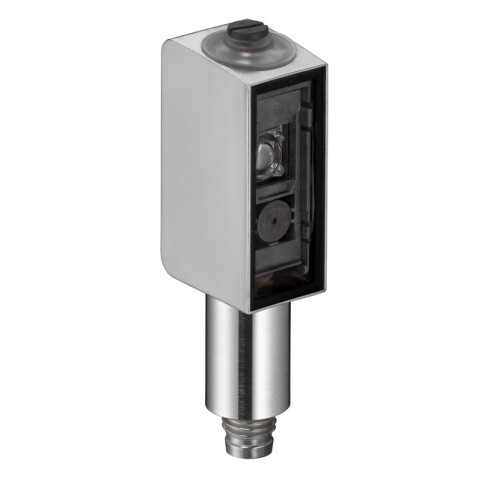

Special version: Wash-Down design; Operating range limit: 0.015 ... 0.4 m; Light source: Laser, Red; Protection class: 1; Shift an

Manufacturer's No: HT53CL1/LG-M8     Manufacturer: Leuze
Special version: Wash-Down design; Operating range limit: 0.015 ... 0.4 m; Light source: Laser, Red; Protection class: 1; Shift angle: Typ. ± 2°; Supply voltage: 10 ... 30 V, DC; Digital switching o

Availability On Request

POA
  • Special version: Wash-Down design
  • Operating range limit: 0.015m to 0.4m
  • Light source: Laser, Red
  • Protection class: 1
  • Shift angle: Typ. ± 2°
  • Supply voltage: 10V to 30V DC
  • Digital switching outputs: 2 Pieces
  • Switching output 1: Transistor, Push-pull, IO-Link, PNP/NPN light switching
  • Switching output 2: Transistor, Push-pull, PNP/NPN dark switching
  • Switching frequency: 3.000 Hz

Read more

  • Interface: IO-Link
  • Connection: Connector, M8, Stainless steel, 4-pin
  • Design, housing: Cubic
  • Dimensions: 14mm x 35.4mm x 25mm
  • Housing material: Stainless steel
  • Operational controls: Multiturn potentiometer
  • Ambient temperature, operation: -40°C to 70°C
  • Degree of protection: IP67, IP68, IP69K

Accessories



Product

Manufacturer Material ID -
HT53CL1/LG-M8
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
32121702

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP68
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
35.4 Millimetre
Housing material -
Metal
Laser protection class -
Class 1
Length of sensor -
20.4 Millimetre
Material of cable sheath -
Other
Max. output current at protected output -
0 Milliampere
Max. switching distance -
400 Millimetre
Maximum output current -
100 Milliampere
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operating distance -
15 Millimetre
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Reaction time -
0.16 Millisecond
Sensing mode -
Light-/dark switching
Setting procedure -
Manual adjustment
Switching frequency -
3000 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Type of light -
Laser diode, red light
Type of switch function -
Anticoincidence
Type of switching output -
PNP/NPN
Voltage type -
DC
Wavelength of the sensor -
650 Nanometre
Width sensor -
14 Millimetre
Leuze

Availability On Request

POA
