50148214

Application: Detection of high-gloss or polished surfaces, Detection of transparent objects; Special version: Wash-Down design, V-

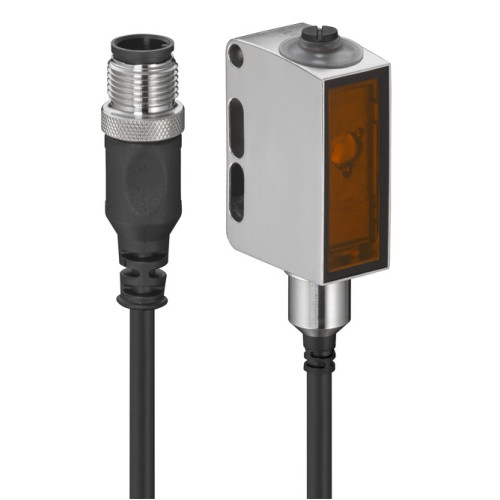

Manufacturer's No: HT55C.V/LG-200-M12     Manufacturer: Leuze
Application: Detection of high-gloss or polished surfaces, Detection of transparent objects; Special version: Wash-Down design, V-optics; Operating range limit: 0.015 ... 0.15 m; Light source: LED, Re

Availability Back Order

POA
  • Application: Detection of high-gloss or polished surfaces, Detection of transparent objects
  • Special version: Wash-Down design, V-optics
  • Operating range limit: 0.015 - 0.15 m
  • Light source: Red LED
  • Supply voltage: 10 - 30 V DC
  • Digital switching outputs: 2
  • Switching output 1: Transistor, Push-pull, IO-Link, PNP/NPN light switching
  • Switching output 2: Transistor, Push-pull, PNP/NPN dark switching
  • Switching frequency: 1,000 Hz
  • Interface: IO-Link

Read more

  • Connection: 200 mm cable with M12 stainless steel 4-pin connector
  • Design: Cubic housing
  • Dimensions: 14 mm x 35.4 mm x 25 mm
  • Housing material: Stainless steel
  • Operational controls: Multiturn potentiometer
  • Ambient temperature, operation: -40 - 70 °C
  • Degree of protection: IP 69K, IP 67, IP 68

Accessories



Product

Manufacturer Material ID -
HT55C.V/LG-200-M12
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
32121702

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
Other
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
35.4 Millimetre
Housing material -
Metal
Length of sensor -
25 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Max. output current at protected output -
0 Milliampere
Max. switching distance -
150 Millimetre
Maximum output current -
100 Milliampere
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operating distance -
15 Millimetre
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Reaction time -
0.5 Millisecond
Sensing mode -
Light-/dark switching
Setting procedure -
Manual adjustment
Switching frequency -
1000 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Type of electric connection -
Cable with connector
Type of light -
Polarity free red light
Type of switch function -
Anticoincidence
Type of switching output -
PNP/NPN
Voltage type -
DC
Wavelength of the sensor -
645 Nanometre
Width sensor -
14 Millimetre
Leuze

Availability Back Order

POA
