DAM00PDSG2SA0000

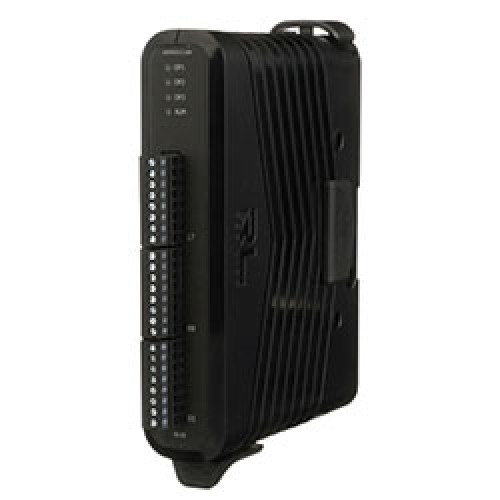

FlexEdge® Module, Strain Gage with SSR Output Module

Manufacturer's No: DAM00PDSG2SA0000     Manufacturer: HMS
FlexEdge® Module, Strain Gage with SSR Output Module

Availability Available to order

£659.00
  • Add strain gage input and single loop PID capabilities to DA70 FlexEdge controller
  • Wide operating temperature range and robust industrial certifications for harsh environments
  • Strain Gage module for DA70 with PID control to reduce overshoot
  • Load Cell, Pressure, and Torque bridge inputs supported
  • Three Solid State NFET outputs available
  • Software selectable low level inputs: 20 mV, 33 mV, or 200 mV full scale
  • Software selectable 5 VDC or 10 VDC bridge excitation
  • Features Digital Tare, Batch Totalizer, and Peak/Valley recording
  • On-demand auto-tuning of PID settings
  • DC analog output included

Read more

  • Auto addressing for minimized configuration time
  • Fully isolated design for reliable operation
  • Configured using Crimson® software (version 3.2 or later)
  • Operating Temperature: -40 to 75°C


Product

Manufacturer Material ID -
DAM00PDSG2SA0000
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
8517790000
Country of Origin -
US
Export Control Regulations -
5A991.b
UNSPSC -
32151705
HMS

Availability Available to order

£659.00
