6GK57982LP102AA6

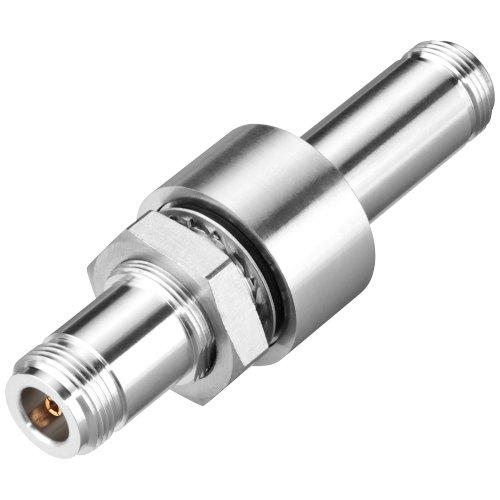

LP 798-2N lightning prot. for SCALANCE W antennas, N/N female/female connection

Manufacturer's No: 6GK5798-2LP10-2AA6     Manufacturer: Siemens
LP 798-2N lightning prot. for SCALANCE W antennas, N/N female/female connection

Availability Back Order

£216.00
  • Lightning protector LP798-2N
  • Lightning protection element with N/N Female/female connection
  • IP65 rating (-40 to +85°C)
  • Frequency range: 2 to 6 GHz
  • Utilizes Quarter-Wave technology for SCALANCE W antennas
  • Compact instructions provided in hard copy in German and English


Product

Manufacturer Material ID -
6GK5798-2LP10-2AA6
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85354000
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43191501

Technical Specification

-
Siemens
Lightning impulse current (10/350 µs) -
- kiloampere
Voltage protection level -
- Volt
Limiting frequency -
- Megahertz
Max. continuous voltage AC -
- Volt
Nominal discharge surge current (8/20) -
- kiloampere
Nominal load current -
- Ampere
Nominal voltage AC -
- Volt
Nominal voltage DC -
- Volt
Voltage protection level core/core -
- Volt
Voltage protection level core/earth -
- Volt
Signalling at the device -
UN
Max. continuous voltage DC -
- Volt
Mounting method -
Other
Connection 1 -
N-Connector
Frequency -
2000 Megahertz
Ambient temperature during operating -
-40 Degrees celsius
Degree of protection (IP rating) -
IP68
Width -
89.6 Millimetre

Availability Back Order

£216.00
