50148501

Special version: Time function, Teach input; Operating range: 60 mm, ± 20 mm; Light source: Laser, Red; Supply voltage: 12

Manufacturer's No: KRT3CL1.3S2/6T-M8     Manufacturer: Leuze
Special version: Time function, Teach input; Operating range: 60 mm, ± 20 mm; Light source: Laser, Red; Supply voltage: 12 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Tra

Availability Back Order

POA
  • Special version with Time function and Teach input
  • Operating range: 60 mm with a tolerance of ± 20 mm
  • Light source: Laser, Red
  • Supply voltage: 12 to 30 V DC
  • Digital switching outputs: 1 Piece
  • Switching output 1: Transistor, Push-pull, Light switching (PNP)/dark switching (NPN)
  • Switching frequency: 4.000 Hz
  • Connection: Connector type M8, 4-pin
  • Dimensions: 11.4 mm x 34.2 mm x 18.3 mm
  • Housing material: Plastic

Read more

  • Operational controls: Teach button

Accessories



Product

Manufacturer Material ID -
KRT3CL1.3S2/6T-M8
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
32121702

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
34.2 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
18.3 Millimetre
Material of optical surface -
Plastic
Maximum output current -
100 Milliampere
No load current -
0 Milliampere
Number of semiconductor outputs with signalling function -
1
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
12 Volt
Setting procedure -
Teach-In
Switching frequency -
4000 Hertz
Type of electric connection -
Connector M8
Type of light -
Laser diode, red light
Type of switch function -
Anticoincidence
Type of switching output -
PNP/NPN
Voltage type -
DC
Width sensor -
11.4 Millimetre

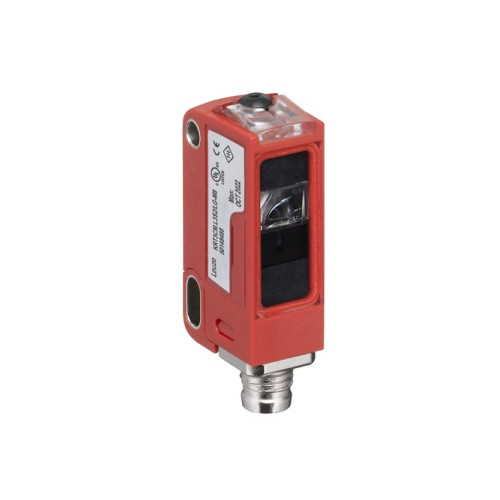

Thumbnail of product picture -
Leuze

Availability Back Order

POA
