3803940

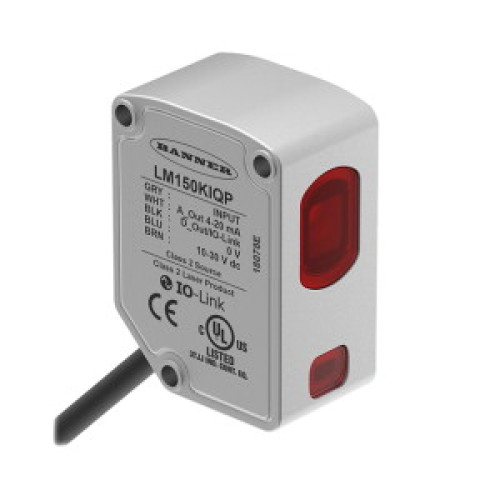

Laser Displacement Sensor, Range: 50-150, Input: 10-30 V dc, Outputs: Analog: 4-20 mA, Discrete: Push/Pull, IO-Link, 150 (6 in) M1

Manufacturer's No: LM150KIQP     Manufacturer: Turck Banner
Laser Displacement Sensor, Range: 50-150, Input: 10-30 V dc, Outputs: Analog: 4-20 mA, Discrete: Push/Pull, IO-Link, 150 (6 in) M12 Pigtail QD

Availability On Request

£1,168.68
  • Type: Photoelectric Sensor, Laser Sensor (Diffuse Mode - Triangulation)
  • Max. Range: 150 mm
  • Range: 50-150 mm
  • Operating Voltage: 10-30 VDC
  • Cable Length: 0.15 m
  • Housing: Stainless steel with IP67 protection class
  • Laser Class: 2, 655 nm visible red laser
  • Output: Analog 4-20 mA, Push/pull switching output or IO-Link
  • Analog Output Accuracy: 0.004 mm
  • IO-Link Accuracy: 0.2 mm

Read more

  • Connection: M12 x 1, 5-pin connector with 300 mm cable


Product

Manufacturer Material ID -
LM150KIQP
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39101628

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

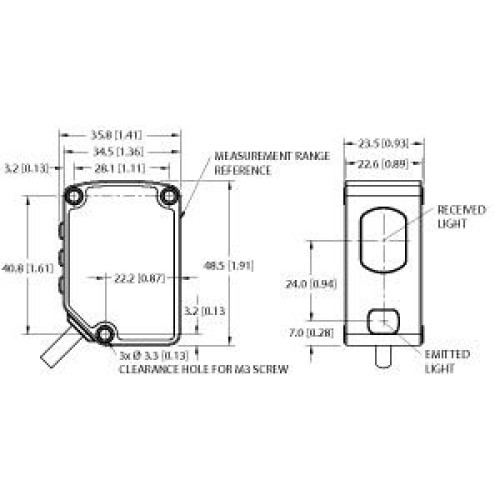

Height of sensor -
48.5 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
35.8 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Standard for interfaces -
Other
Supply voltage -
10 Volt
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
23.5 Millimetre
Turck Banner

Availability On Request

£1,168.68
