6EP44487FB003CX0

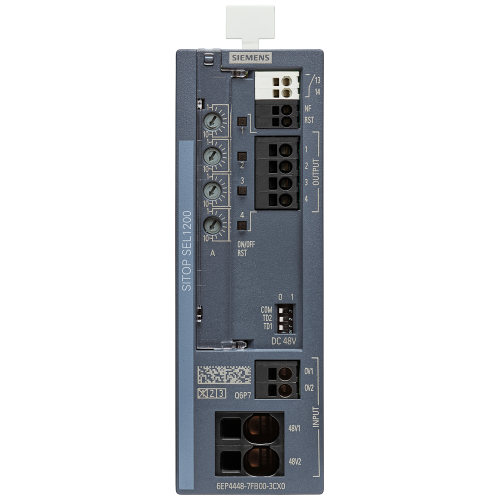

SITOP SEL1200 48 V 10 A selectivity module 4-channel with switching characteristic input: 48 V DC/40 A output: 48 V DC/4x 10 A thr

Manufacturer's No: 6EP4448-7FB00-3CX0     Manufacturer: Siemens
SITOP SEL1200 48 V 10 A selectivity module 4-channel with switching characteristic input: 48 V DC/40 A output: 48 V DC/4x 10 A threshold value adjustable 1-10 A with monitoring interface

Availability Available to order

£244.00
  • SITOP SEL1200 48 V 10 A Selectivity Module
  • 4-Channel with Switching Characteristic
  • Input: 48 V DC / 40 A
  • Output: 48 V DC / 4x 10 A
  • Threshold Value Adjustable: 1-10 A
  • Includes Monitoring Interface


Product

Manufacturer Material ID -
6EP4448-7FB00-3CX0
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85363010
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: 9N9999
UNSPSC -
39121601

Technical Specification

Contains function DC-voltage over current -
Current measurement range -
1 Ampere
Depth -
125 Millimetre
Function DC-current hysteresis -
Height -
135 Millimetre
Max. permitted delay-on energization time -
5 Second
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Width -
45 Millimetre
Commodity Code -
85363010

Availability Available to order

£244.00
