50148177

Special version: Wash-Down design, Activation input; Operating range limit: 0.05 ... 10 m; Light source: LED, Red; Supply voltage:

Manufacturer's No: LS55C/8X-M8     Manufacturer: Leuze
Special version: Wash-Down design, Activation input; Operating range limit: 0.05 ... 10 m; Light source: LED, Red; Supply voltage: 10 ... 30 V, DC; Connection: Connector, M8, Stainless steel, 4 -pin;

Availability Back Order

POA
  • Special version: Wash-Down design, Activation input
  • Operating range limit: 0.05 - 10 m
  • Light source: Red LED
  • Supply voltage: 10 - 30 V DC
  • Connection: M8 Stainless steel Connector, 4-pin
  • Housing design: Cubic
  • Dimensions: 14 mm x 35.4 mm x 25 mm
  • Housing material: Stainless steel
  • Ambient temperature, operation: -40°C to 70°C
  • Degree of protection: IP 68, IP 67, IP 69K

Accessories

Others



Product

Manufacturer Material ID -
LS55C/8X-M8
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
32121702

Technical Specification

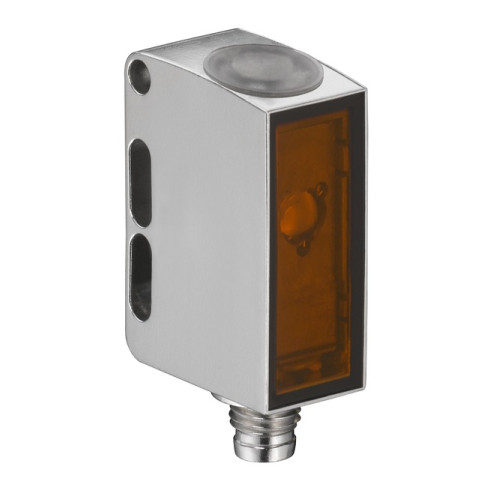

Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP68
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
35.4 Millimetre
Housing material -
Metal
Laser protection class -
None
Length of sensor -
25 Millimetre
Max. output current at protected output -
0 Milliampere
Max. switching distance -
10000 Millimetre
Min. reflector distance -
50 Millimetre
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
8500 Millimetre
Scope of delivery of the one-way system -
Transmitter
Switching voltage of OSSD at state "high" -
0 Volt
Transmission range of the safety field -
0.05 Metre
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Other
Voltage type -
DC
Wavelength of the sensor -
645 Nanometre
Width sensor -
14 Millimetre
Leuze

Availability Back Order

POA
