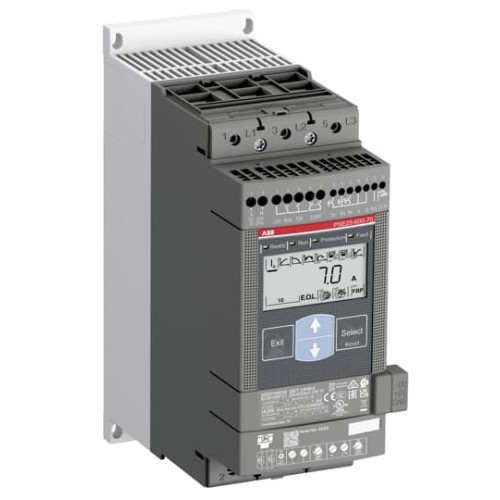

1SFA897102R7000

11kW (25A) , PSE Basic Softstart, 24VDC control

Manufacturer's No: PSE25-600-70     Manufacturer: ABB
11kW (25A) , PSE Basic Softstart, 24VDC control

Availability On Request

£726.11
  • Power: 11 kW (25A)
  • Softstarter Model: PSE Basic Softstart
  • Control Voltage: 24VDC
  • Operational Current: 25 A
  • Operating Voltage: 208-600 V AC
  • Control Voltage Range: 100-250 V AC at 50/60 Hz
  • Features two-phase control with soft start and stop through voltage or torque ramp
  • Built-in bypass for easy installation and energy saving
  • Relay output for RUN, TOR, and Event signals in normally open state
  • Functions include current limit, kickstart, analog output, EOL, underload, and locked rotor protection

Read more

  • Illuminated display with language-neutral symbols
  • Option to add external keypad with IP66 rating
  • Communication methods: hardwire inputs Start/Stop, Reset of fault, Modbus RTU fieldbus communication
  • Suitable for small to medium-sized three-phase motors with nominal currents from 18-370 A
  • Ideal for applications such as pumps, fans, compressors, and conveyors


Product

Manufacturer Material ID -
PSE25-600-70
Net Weight -
2.40kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP00
Degree of protection (NEMA) -
1
Display -
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
25 Ampere
Rated power three-phase motor, inline, at 230 V -
5.5 Kilowatt
Rated power three-phase motor, inline, at 400 V -
11 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Torque control -
Voltage type for actuating -
AC
ABB

Availability On Request

£726.11
