7KM54126BA001EA2

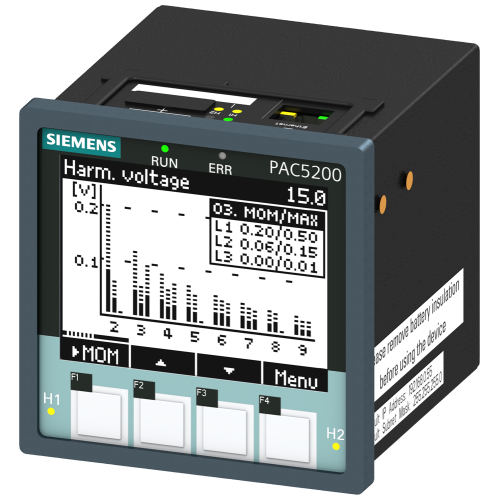

SENTRON, measuring device and power quality recorder, 7KM PAC5200, LCD, L-L: 690 V

Manufacturer's No: 7KM5412-6BA00-1EA2     Manufacturer: Siemens
SENTRON, measuring device and power quality recorder, 7KM PAC5200, LCD, L-L: 690 V

Availability Back Order

£2,052.91
  • Device: SENTRON 7KM PAC5200
  • Measurements:
    • Voltage: Line-Line: 690 V, Line-Neutral: 400 V
    • Current: 10 A, 3-phase
  • Voltage: Line-Line: 690 V, Line-Neutral: 400 V
  • Current: 10 A, 3-phase
  • Features:
    • LCD display
    • Modbus TCP communication
    • Measures apparent, active, and reactive energy, power factor
    • Harmonics analysis: 2nd to 40th order
    • Total Harmonic Distortion (THD)
    • Accuracy: Class 0.5 per IEC61557-12 or Class 0.5S per IEC62053-22
  • LCD display
  • Modbus TCP communication
  • Measures apparent, active, and reactive energy, power factor
  • Harmonics analysis: 2nd to 40th order
  • Total Harmonic Distortion (THD)

Read more

  • Accuracy: Class 0.5 per IEC61557-12 or Class 0.5S per IEC62053-22
  • Power Supply: Wide-range AC/DC
  • Connection: Screw terminals
Presentation video
Product video
Presentation video


Product

Manufacturer Material ID -
7KM5412-6BA00-1EA2
Net Weight -
0.83kg

Additional Product Information

Commodity Code -
90303100
Country of Origin -
IN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
UNSPSC -
41113637

Technical Specification

-
Siemens
Ampere meter -
Blind power meter -
Depth -
147.9 Millimetre
Effective power measurement device -
Ethernet-connections -
0
Frequency meter -
Height -
96 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of current measurement inputs -
3
Number of digital inputs -
0
Number of digital outputs -
2
Number of voltage measurement inputs -
3
Pulse counter -
Supply voltage AC 50 Hz -
400 Volt
Supply voltage AC 60 Hz -
690 Volt
Supply voltage DC -
20 Volt
Supporting protocol for MODBUS -
Voltmeter -
Width -
96 Millimetre
With audit logging (audit log) -

Availability Back Order

£2,052.91
