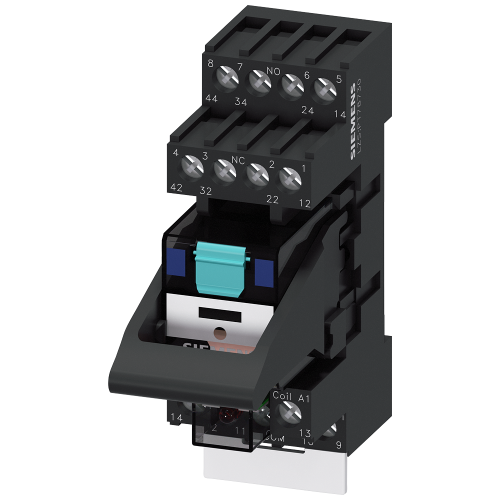

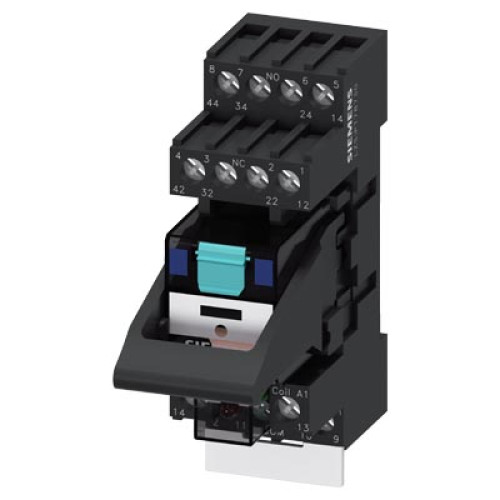

LZS:PT5A5L24

Plug-in relay complete unit 4 W, 24 V DC LED module red Standard plug-in socket screw terminal 3.5 m

Manufacturer's No: LZS:PT5A5L24     Manufacturer: Siemens

Availability In Stock

£19.25
  • Plug-in relay unit
  • 4 changeover contacts
  • 24 V DC
  • LED module (red)
  • Standard plug-in socket with screw terminal
  • 3.5 mm pinning
Product video
Product video


Product

Manufacturer Material ID -
LZS:PT5A5L24
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
5
UNSPSC -
39122331

Technical Specification

Nominal current -
- Ampere
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Degree of protection (IP) -
IP20
Type of switch contact -
Single contact
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
72 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
74 Millimetre
Number of contacts as change-over contact -
4
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Type of electric connection -
Screw connection
Voltage type for actuating -
DC
Width -
27 Millimetre
With LED indication -

Availability In Stock

£19.25
