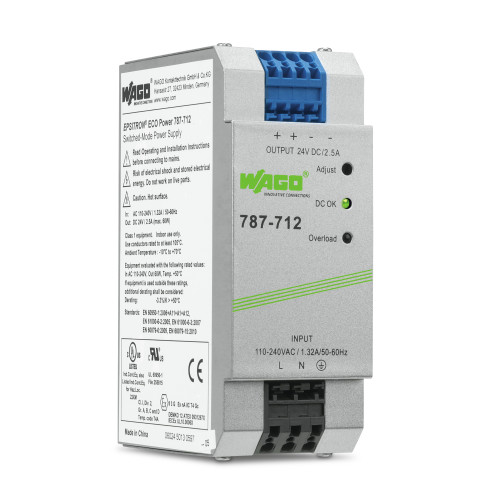

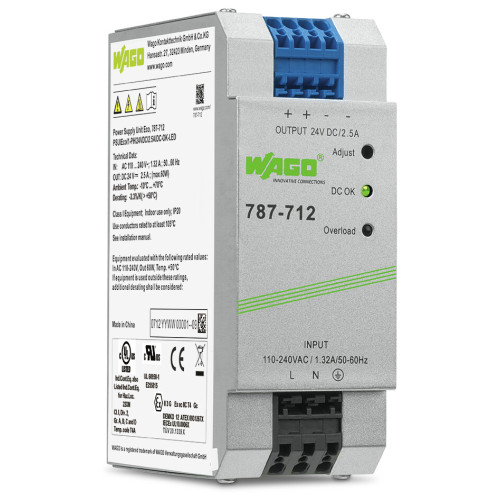

787-712

Switched-mode power supply; Eco; 1-phase; 24 VDC output voltage; 2.5 A output current; DC-OK LED

Manufacturer's No: 787-712     Manufacturer: WAGO
Switched-mode power supply; Eco; 1-phase; 24 VDC output voltage; 2.5 A output current; DC-OK LED

Availability In Stock

£65.968
List Price £82.46
  • Power supply for eco-friendly applications
  • 1-phase with 24 VDC output voltage
  • 2.5 A output current
  • Features DC-OK LED indicator
  • Suitable for use with 4.00 mm² wiring

Accessories



Product

Manufacturer Material ID -
787-712
Net Weight -
0.47kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
1st secondary output voltage -
22 Volt
Degree of protection (IP rating) -
IP20
Depth -
136 Millimetre
Height -
92 Millimetre
Max. output current 1 -
2.5 Ampere
Modular version -
Nominal value output current 1 -
2.5 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
60 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
90 Volt
Rated supply voltage at AC 60 Hz -
90 Volt
Rated supply voltage at DC -
90 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
AC/DC
Width -
50 Millimetre
Width in number of modular spacings -
3

Availability In Stock

£65.968
List Price £82.46
