787-835

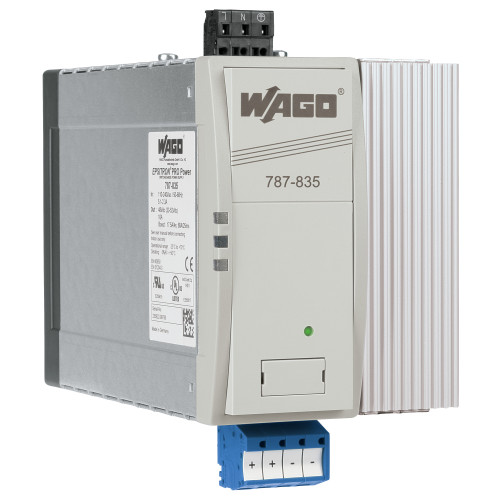

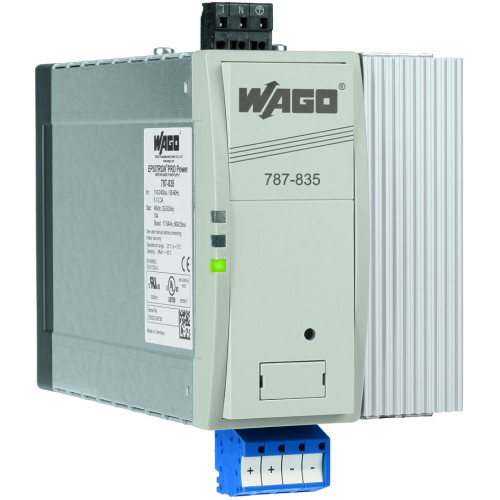

Epsitron Power Supplies, Output Voltage Dc 48 V 10A

Manufacturer's No: 787-835     Manufacturer: WAGO
Epsitron Power Supplies, Output Voltage Dc 48 V 10A

Availability Back Order

£398.656
List Price £498.32
  • Switched-mode power supply
  • Pro model
  • 1-phase
  • 48 VDC output voltage
  • 10 A output current
  • TopBoost + PowerBoost features
  • DC OK contact

Accessories

Miniature WSB Quick Marking System, Plain Marker Width 5 mm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501
Price £2.82
Back Order


Product

Manufacturer Material ID -
787-835
Net Weight -
2.46kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
1st secondary output voltage -
33 Volt
Degree of protection (IP rating) -
IP20
Depth -
187 Millimetre
Height -
171 Millimetre
Max. output current 1 -
10 Ampere
Modular version -
Nominal value output current 1 -
10 Ampere
Nominal value output voltage 1 -
48 Volt
Output voltage stabilized -
Power output -
480 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
85 Volt
Rated supply voltage at AC 60 Hz -
85 Volt
Rated supply voltage at DC -
120 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
AC/DC
Width -
97 Millimetre
Width in number of modular spacings -
6

Availability Back Order

£398.656
List Price £498.32
