50148196

Special version: Wash-Down design, Autocollimation; Operating range limit: 0 ... 3 m; Light source: Laser, Red; Protection class:

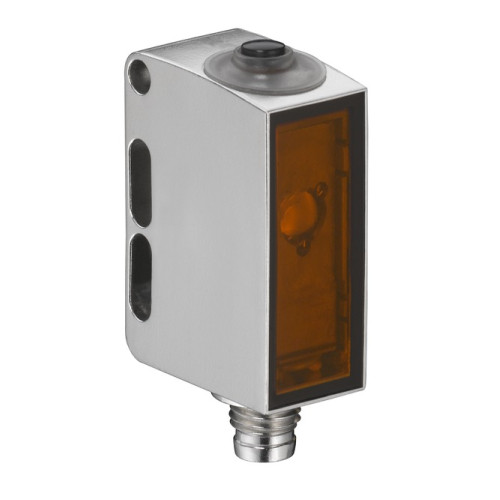

Manufacturer's No: PRK55CL1.A3/LG-M8     Manufacturer: Leuze
Special version: Wash-Down design, Autocollimation; Operating range limit: 0 ... 3 m; Light source: Laser, Red; Protection class: 1; Shift angle: Typ. ± 2°; Supply voltage: 10 ... 30 V, DC; Digital

Availability Back Order

POA
  • Special version: Wash-Down design, Autocollimation
  • Operating range limit: 0 to 3 m
  • Light source: Laser, Red
  • Protection class: 1
  • Shift angle: ± 2°
  • Supply voltage: 10 to 30 V DC
  • Digital switching outputs: 2 Pieces
  • Switching output 1: Transistor, Push-pull, IO-Link (light switching PNP/dark switching NPN)
  • Switching output 2: Transistor, Push-pull, Dark switching PNP/light switching NPN
  • Switching frequency: 3.000 Hz

Read more

  • Interface: IO-Link
  • Connection: Connector, M8, Stainless steel, 4-pin
  • Design, housing: Cubic
  • Dimensions: 14 mm x 35.4 mm x 25 mm
  • Housing material: Stainless steel
  • Operational controls: Teach button
  • Ambient temperature, operation: -40 to 70 °C
  • Degree of protection: IP 68, IP 67, IP 69K

Accessories



Product

Manufacturer Material ID -
PRK55CL1.A3/LG-M8
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
32121702

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP68
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
35.4 Millimetre
Housing material -
Metal
Laser protection class -
Class 1
Length of sensor -
25 Millimetre
Material of optical surface -
Other
Max. switching distance -
2000 Millimetre
Maximum output current -
100 Milliampere
Min. reflector distance -
0 Millimetre
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
2000 Millimetre
Reaction time -
0.17 Millisecond
Sensing mode -
Light-/dark switching
Setting procedure -
Teach-In
Switching frequency -
3000 Hertz
Type of electric connection -
Connector M8
Type of light -
Laser diode, red light
Type of switch function -
Anticoincidence
Type of switching output -
Other
Voltage type -
DC
Wavelength of the sensor -
650 Nanometre
Width sensor -
14 Millimetre
