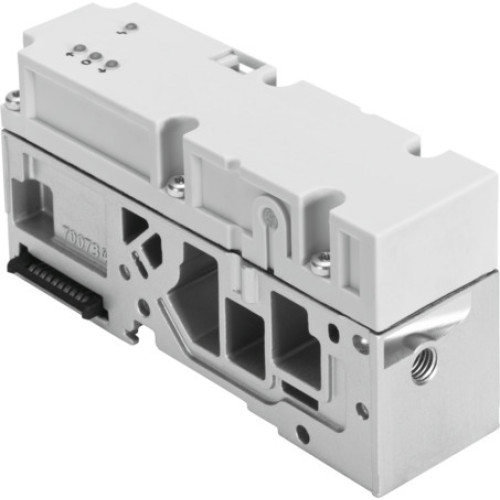

VMPA-FB-PS-P1 Pressure sensor

Manufacturer's No: VMPA-FB-PS-P1     Manufacturer: Festo
VMPA-FB-PS-P1 Pressure sensor

Availability Available to order

£229.30
  • Pressure sensor model: VMPA-FB-PS-P1
  • Measured variable: Relative pressure
  • Measurement method: Piezoresistive pressure sensor with display
  • Pressure measuring range: 0 MPa, 1 MPa, 0 bar, 10 bar, 0 psi, 145 psi
  • Media temperature range: -5°C to 50°C
  • Ambient temperature range: -5°C to 50°C
  • Pressure resolution: 0.001 bar
  • Accuracy: ±2.5% FS
  • Operational voltage range: 18 V to 30 V
  • Nominal operating voltage: 24 V

Read more

  • Permissible voltage fluctuations: ±25%
  • Reverse polarity protection: Yes
  • Electrical connection: Via sub-base
  • Pneumatic connection: M7
  • Product weight: 200 g
  • Housing material: Die-cast aluminium, PA-GF
  • Display type: LED
  • Displayable units: kPa, mbar, psi
  • Switching status indication: LED
  • Setting range threshold value: 0% to 100%, 0 bar to 10 bar
  • Setting range hysteresis: 0% to 100%, 0 bar to 10 bar
  • Degree of protection: IP65
  • Corrosion resistance class: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L


Product

Manufacturer Material ID -
VMPA-FB-PS-P1
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
CH
UNSPSC -
39121501

Technical Specification

Thumbnail of product picture -
Medien_800/Pictures_800/541087_800.jpg
Festo

Availability Available to order

£229.30
