53800301

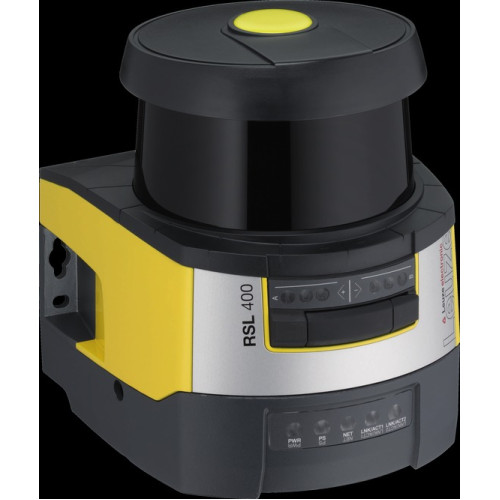

Safety laser scanner Type: 3, IEC/EN 61496; SIL: 2, IEC 61508; Performance Level (PL): d, EN ISO 13849-1; Scanning angle: 270 °

Manufacturer's No: RSL420P-M/CU400P-3M12     Manufacturer: Leuze
Safety laser scanner Type: 3, IEC/EN 61496; SIL: 2, IEC 61508; Performance Level (PL): d, EN ISO 13849-1; Scanning angle: 270 °; Number of field pairs, reversible: 10; Number of protective functions:

Availability Back Order

£5,843.00
  • Type: 3, IEC/EN 61496
  • SIL: 2, IEC 61508
  • Performance Level (PL): d, EN ISO 13849-1
  • Scanning angle: 270°
  • Resolution of protective field: 30/40/50/60/70/150 mm (adjustable)
  • Number of field pairs: 10 (switchable)
  • Number of protective functions: 1
  • Operating range: 0 to 4.5 m
  • Range of warning field: 0 to 20 m
  • Supply voltage: 24 V DC, -30% to +20%

Read more

  • Type of interface: PROFINET
  • Connection 1: M12 4-pin connector
  • Connection 2: M12 4-pin connector
  • Dimensions: 140.2 mm x 170 mm x 142 mm

Accessories

Spare part



Product

Manufacturer Material ID -
RSL420P-M/CU400P-3M12
Net Weight -
4.15kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Leuze
Number of semiconductor outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Type of interface for safety communication -
UN
Type of switching output of the OSSD -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Max. output current at protected output -
- Milliampere
Time of reaction -
- Millisecond
Switching voltage of OSSD at state "high" -
- Volt
Detection power for test bodies -
1 Millimetre
Scan angle -
270 Degrees
Transmission range of the measuring range -
50 Metre
Thumbnail of product picture -
Ambient temperature -
0 Degrees celsius
Height of sensor -
170 Millimetre
Laser protection class -
Class 1
Length of sensor -
142 Millimetre
Number of safety fields -
1
Operation agent-safety class -
Safety class 3
Reaction time -
80 Millisecond
Scanning interval -
0.09 Hertz
Transmission range of the alert field -
0 Metre
Transmission range of the safety field -
0 Metre
Type of electric connection -
Connector M12
Type of safety acc. IEC 61496-1 -
3
Voltage type -
DC
Wavelength of the sensor -
905 Nanometre
Width sensor -
140.2 Millimetre
With configurable message output -
Leuze

Availability Back Order

£5,843.00
