540005

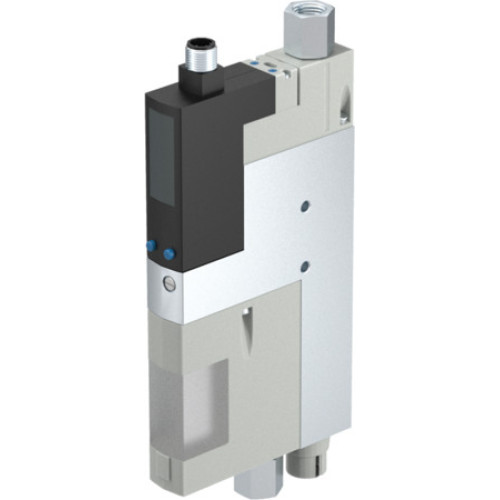

OVEM-14-H-B-GO-OE-N-2N Vacuum generator

Manufacturer's No: OVEM-14-H-B-GO-OE-N-2N     Manufacturer: Festo
OVEM-14-H-B-GO-OE-N-2N Vacuum generator

Availability Back Order

£186.52
  • Model: OVEM-14-H-B-GO-OE-N-2N
  • Nominal size Laval nozzle: 1.4 mm
  • Grid dimension: 20 mm
  • Silencer design: Open
  • Ejector characteristic: High vacuum, Standard
  • Integrated functions: Electric ejector pulse valve, Flow control, Electric on-off valve, Filter, Air saving function, Check valve, Vacuum switch
  • Design: Modular
  • Short circuit current rating: Yes
  • Measured variable: Relative pressure
  • Measuring principle: Piezoresistive

Read more

  • Display type: 4-place alphanumeric, Back-lit LCD
  • Indicating range: -0.999 bar, 0 bar
  • Operating pressure: 2 bar, 8 bar, Max. vacuum 93%
  • Nominal operating pressure: 6 bar
  • Max. suction flow rate against atmosphere: 50.5 L/min
  • Air supply time at nominal operating pressure: 0.2 s
  • Operational voltage range DC: 20.4 V - 27.6 V
  • Duty cycle: 100%
  • Insulation voltage: 50 V
  • Switching output: 2xNPN
  • Media temperature: 0°C - 50°C
  • Relative air humidity: 5% - 85%
  • Sound pressure level at nominal operating pressure: 77 dBA
  • Degree of protection: IP65, Protection class: III
  • Ambient temperature: 0°C - 50°C
  • Product weight: 385 g
  • Pressure measuring range: -1 bar, 0 bar
  • Accuracy: ±3% FS, Reproducibility: 0.6%
  • Electrical connection: 5-pin, M12x1, Plugs
  • Type of mounting: With through-hole, Via female thread, With accessories
  • Pneumatic connection port 1: G1/4
  • Vacuum connection: G1/4
  • Material seals: NBR, Material housing: Die-cast aluminium, PA-reinforced

Accessories

QS-G1/4-10-I PUSH-IN FITTING

Product Code - 186112
Price £4.00
Back Order

QS-G1/4-10 PUSH-IN FITTING

Product Code - 186101
Price £3.56
Back Order


Product

Manufacturer Material ID -
OVEM-14-H-B-GO-OE-N-2N
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Pilz
Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Connector M12
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
75 Millimetre
Length of sensor -
40 Millimetre
Width sensor -
40 Millimetre
Thumbnail of product picture -
Medien_800/Pictures_800/540005_800.jpg
Festo

Availability Back Order

£186.52
