630722

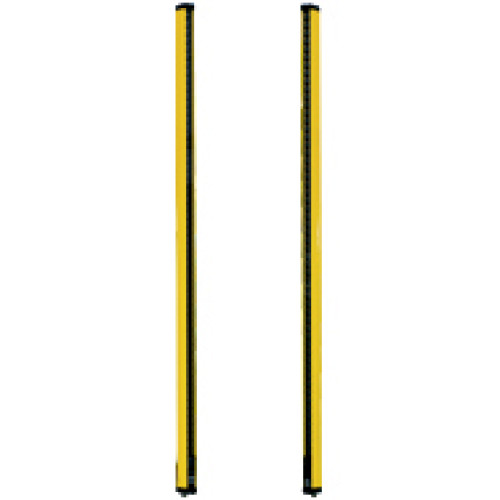

Safety light curtain, type 2, PL c, hand protection (resolution 30 mm) Protected field height 450 mm, supply voltage 24 V, connect

Manufacturer's No: PSEN op2H-s-30-045/1     Manufacturer: Pilz
Safety light curtain, type 2, PL c, hand protection (resolution 30 mm) Protected field height 450 mm, supply voltage 24 V, connector M12, sender: 4-pin, receiver: 5-pin, Connection cable not supplied

Availability Back Order

£768.49
  • Safety light guard Type 2
  • PL c hand protection with a resolution of 30 mm
  • Protected field height of 450 mm
  • Supply voltage: 24 V
  • Connector type: M12
  • Transmitter: 4-pin
  • Receiver: 5-pin
  • Connection cable not included

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PSEN op2H-s-30-045/1
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pilz
Number of semiconductor outputs with signalling function -
0
Ambient temperature -
0 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
533.2 Millimetre
Length of sensor -
36.9 Millimetre
Number of protected semiconductor outputs -
2
Reaction time -
11 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
450 Millimetre
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
19 Metre
Type of safety acc. IEC 61496-1 -
2
Voltage type -
DC
Width sensor -
32.3 Millimetre
