630750

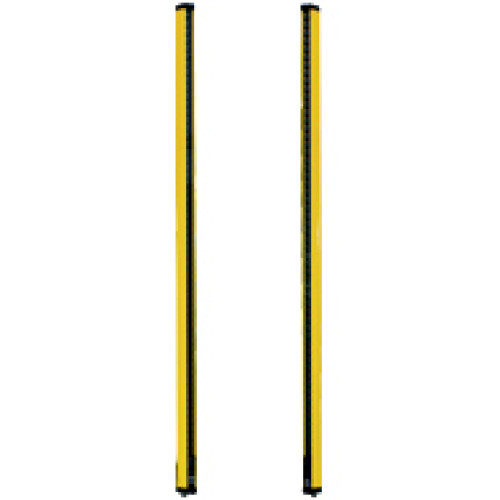

Safety light curtain, type 4, PL e, finger protection (resolution 14 mm) Protected field height 1650 mm, supply voltage 24 V, conn

Manufacturer's No: PSEN op4F-s-14-165/1     Manufacturer: Pilz
Safety light curtain, type 4, PL e, finger protection (resolution 14 mm) Protected field height 1650 mm, supply voltage 24 V, connector M12,  sender: 4-pin, receiver: 8-pin, Connection cable not suppl

Availability Back Order

£4,359.96
  • Safety light guard Type 4 with PL e certification
  • Finger protection with a resolution of 14 mm
  • Protected field height of 1650 mm
  • Supply voltage: 24 V
  • Transmitter connector: M12, 4-pin
  • Receiver connector: M12, 8-pin
  • Connection cable not included

Mandatory additional product



Product

Manufacturer Material ID -
PSEN op4F-s-14-165/1
Net Weight -
8.00kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pilz
Number of semiconductor outputs with signalling function -
0
Ambient temperature -
0 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
1733.3 Millimetre
Length of sensor -
36.9 Millimetre
Number of protected semiconductor outputs -
2
Reaction time -
47 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
1650 Millimetre
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
5 Metre
Type of safety acc. IEC 61496-1 -
4
Voltage type -
DC
Width sensor -
32.3 Millimetre
Pilz

Availability Back Order

£4,359.96
