3SE29321AB20

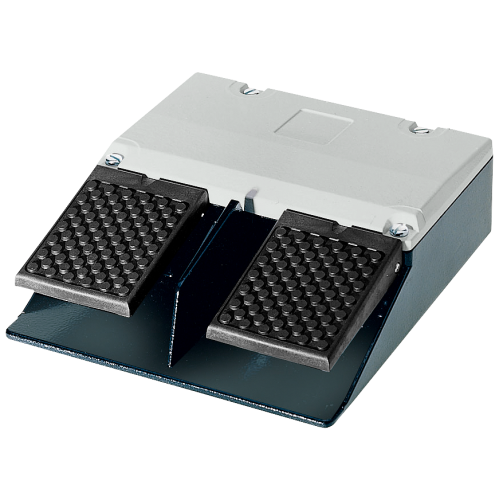

Momentary-contact foot switch, 2-pedal cable entry M25x1.5 IP65, 2 NO + 2 NC/2 NO + 2 NC

Manufacturer's No: 3SE2932-1AB20     Manufacturer: Siemens

Availability Back Order

£182.42
  • Momentary-contact foot switch
  • 2-pedal design without cover
  • Metal enclosure with IP65 rating
  • Slow-action contacts with 2 normally open and 2 normally closed per pedal
  • Cable entry size M25 x 1.5


Product

Manufacturer Material ID -
3SE2932-1AB20
Net Weight -
2.04kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Siemens
Type of command -
UN
Number of contacts as change-over contact -
-
Degree of protection (NEMA) -
UN
Number of switch levels -
1
Degree of protection (IP) -
IP65
Colour -
Grey
Degree of protection (IP rating) -
IP65
Depth -
221 Millimetre
Height -
68 Millimetre
Material -
Metal
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
Number of switch positions -
1
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Width -
193 Millimetre

Availability Back Order

£182.42
